category:
Electric Motors
height:
9
length:
7.75
manufacturer:
Century
mpn:
D1198
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.6
width:
7.25

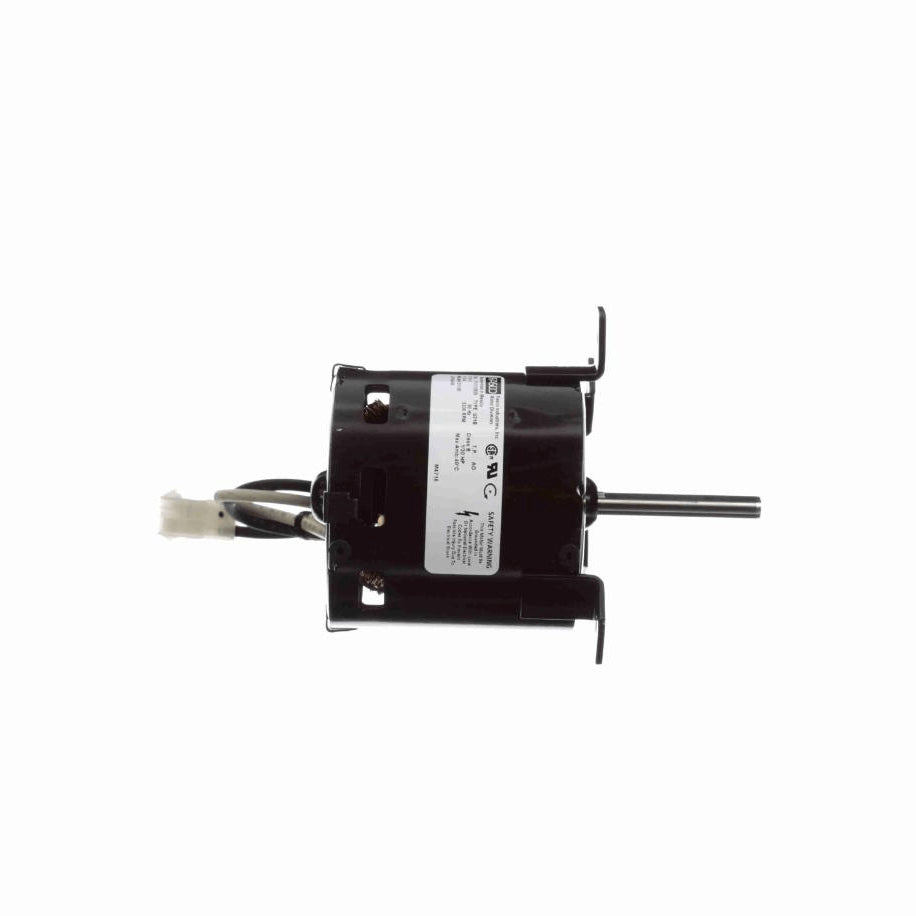

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 8" Leads with Socket Terminal
- Lug Mount Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed3200 rpm
Current1.50 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.60 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.96 in
Shaft Diameter0.313 in
Shaft Extension2.3 in
CEN
Starting MethodAcross The Line
