category:
Electric Motors
height:
5
length:
8
manufacturer:
Century
mpn:
D1118
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4
width:
5.63

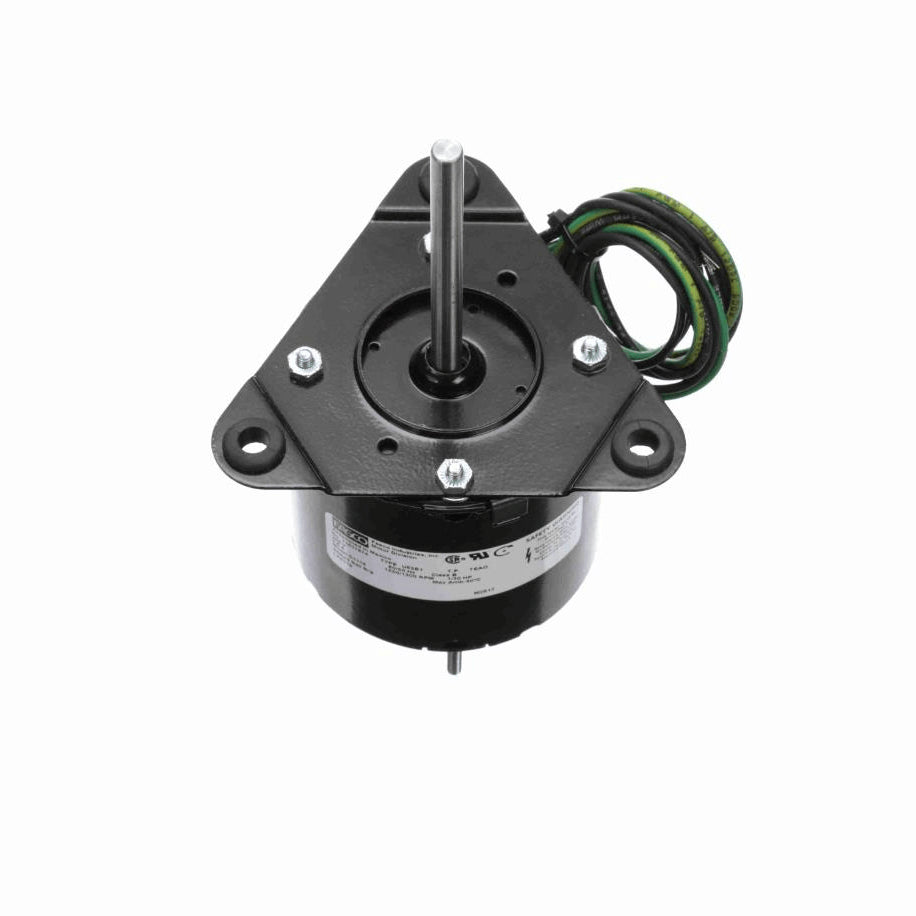

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 23" Leads
- Extended Studs Opposite Shaft End, Mounting Plate Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550/1300 rpm
Current0.60 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight4.00 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingLug
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.62 in
Shaft Diameter0.312 in
Shaft Extension3.5 in
CEN
Starting MethodAcross The Line
