category:
Electric Motors
height:
18
length:
11
manufacturer:
Century
mpn:
D1053
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
11

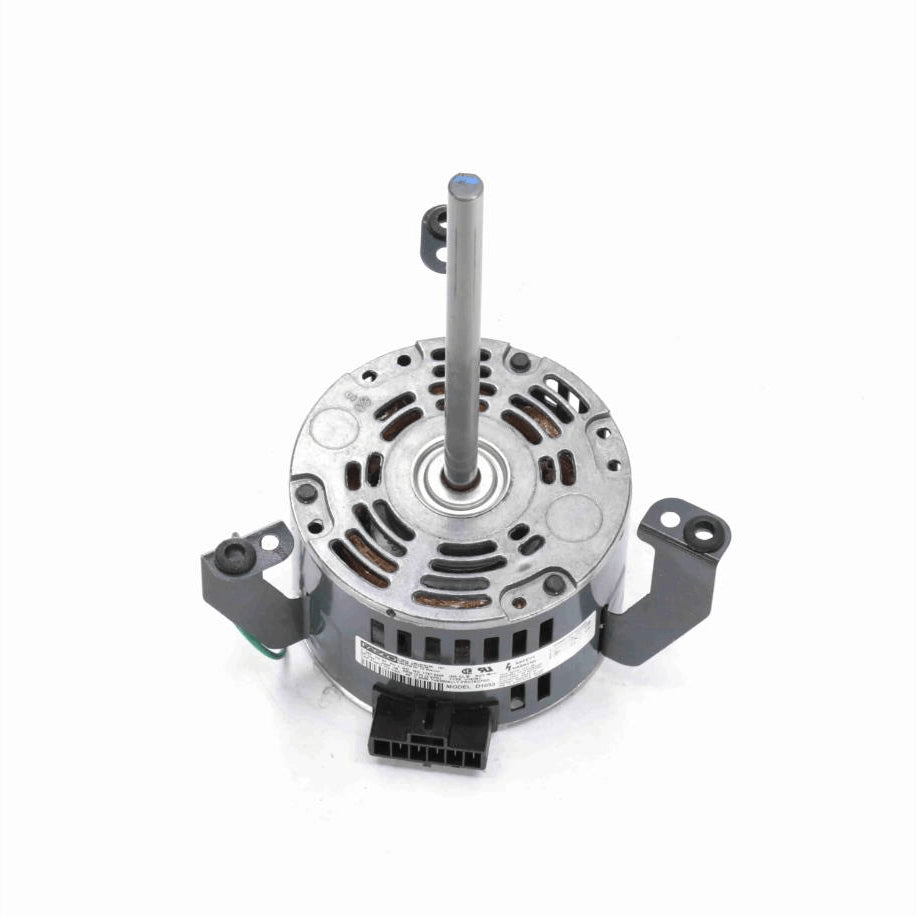

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- Terminal Block
- Flex Mount
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current0.38 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/30 Hp
Output KW0.02 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.33 in
Shaft Diameter0.500 in
Shaft Extension7.15 in
CEN
Starting MethodAcross The Line
