category:
Electric Motors
height:
15
length:
5.13
manufacturer:
Century
mpn:
D1006
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
5.13

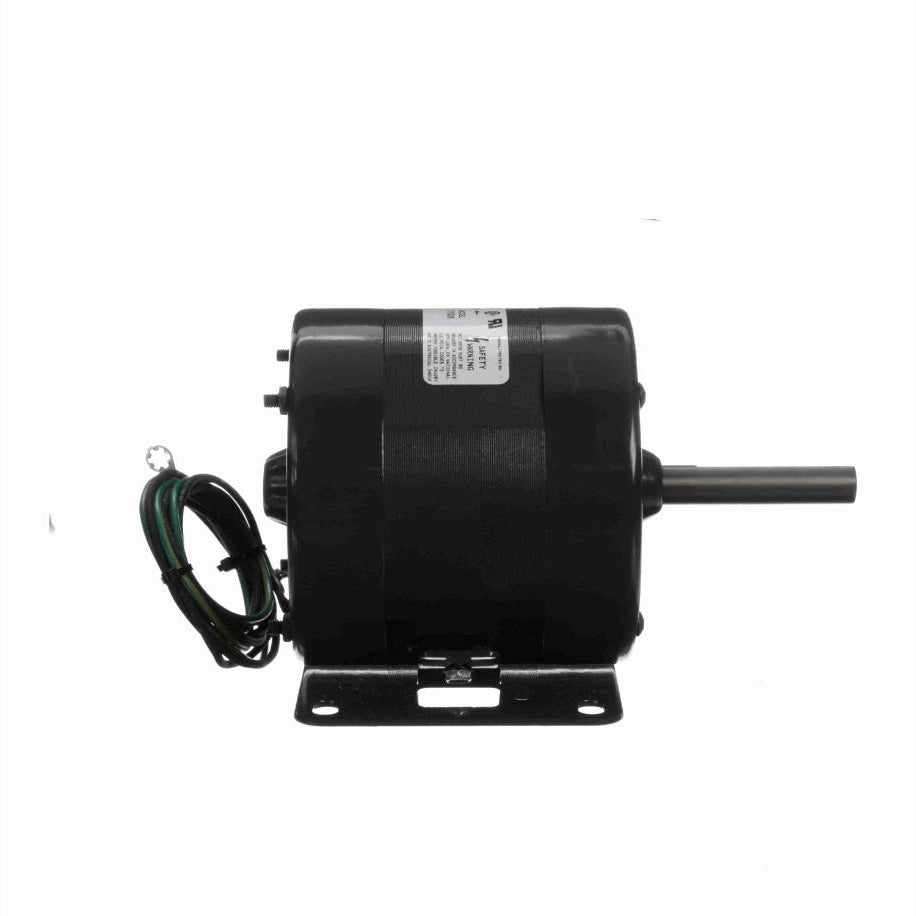

Product Overview
- OEM Direct Replacement Motor
- 4.4" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 24" Leads
- Rigid Base
Additional Information
Thermal ProtectionThermally Protected
Speed1600 rpm
Current7.2 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame4.4
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingRigid Base
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension2.75 in
CEN
Starting MethodAcross The Line
