category:
Electric Motors
height:
8
length:
14.12
manufacturer:
Century
mpn:
D829
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
12.45
width:
8.38

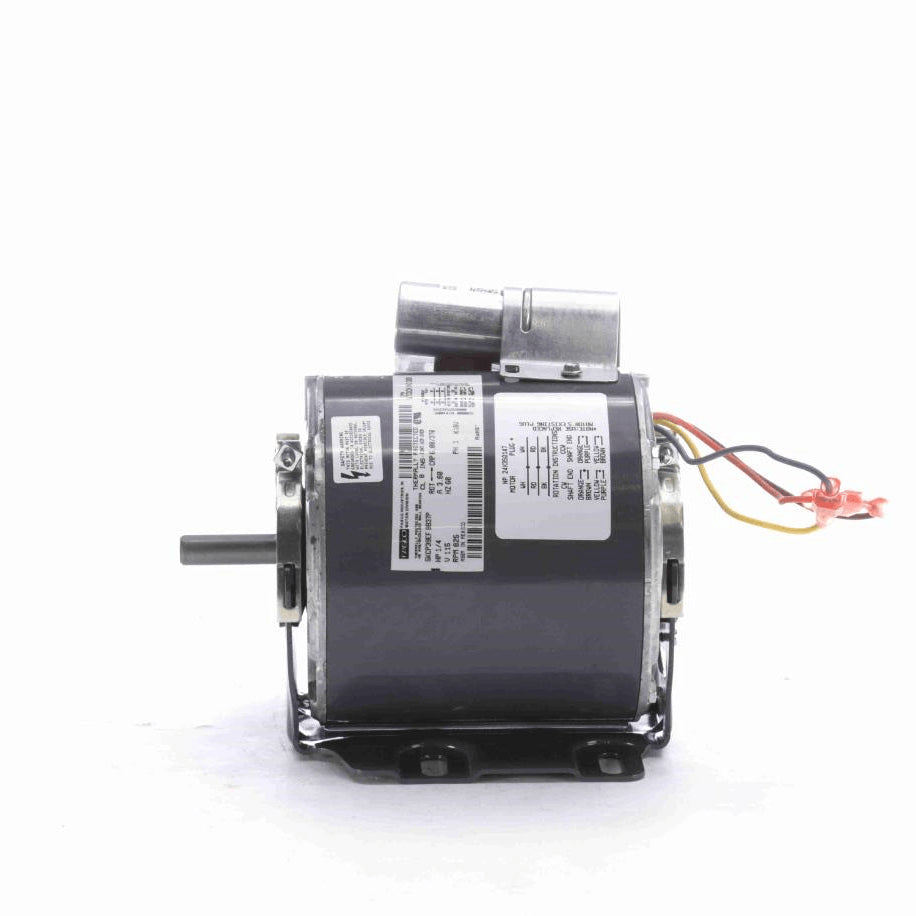

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 20" Leads
- Resilient Base
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current5.04 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight12.45 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise/Clockwise
MountingResilient Base
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.82 in
Shaft Diameter0.500 in
Shaft Extension1.50 in
CEN
