category:
Electric Motors
height:
10
length:
5.13
manufacturer:
Century
mpn:
D1016
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9.8
width:
5.13

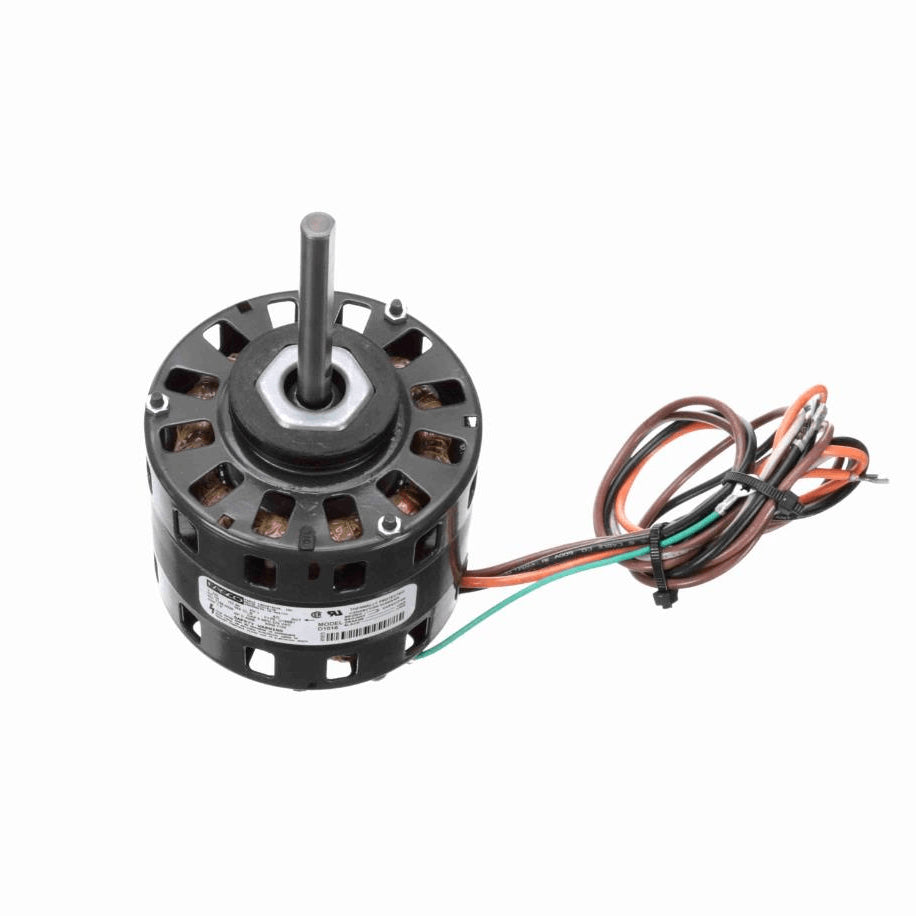

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 37" Leads with Quick Connect Terminals
- Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1100 rpm
Current1.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.80 LB
Country Of originMexico
Output HP1/4 Hp
Output KW0.19 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension3.51 in
CEN
Starting MethodAcross The Line
