category:
Electric Motors
height:
7.75
length:
11.38
manufacturer:
Century
mpn:
D0343
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.82
width:
8.25

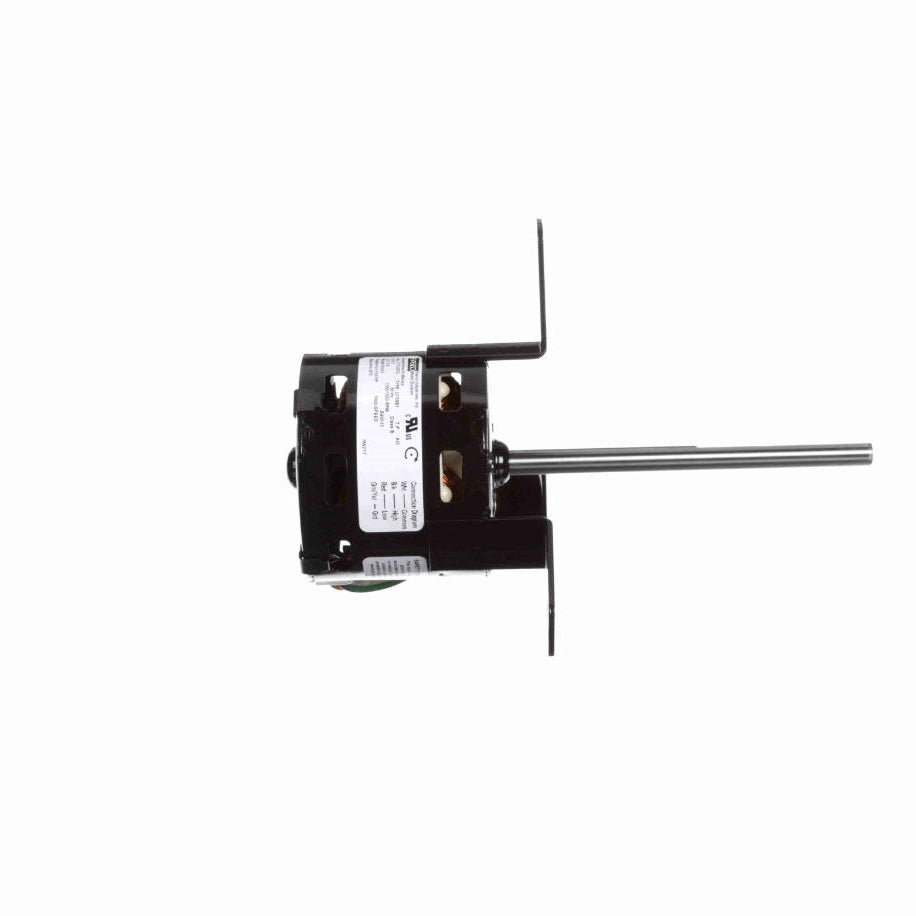

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 10" Leads with Plug Assembly
- Lug Mount Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1050/1550 rpm
Current0.60/1.30 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight3.82 LB
Country Of originMexico
Output HP1/40 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4/6
RotationClockwise Shaft End
MountingLug
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.79 in
Shaft Diameter0.375 in
Shaft Extension5.50 in
CEN
Starting MethodAcross The Line
