category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D2840
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9.8
width:
5.63

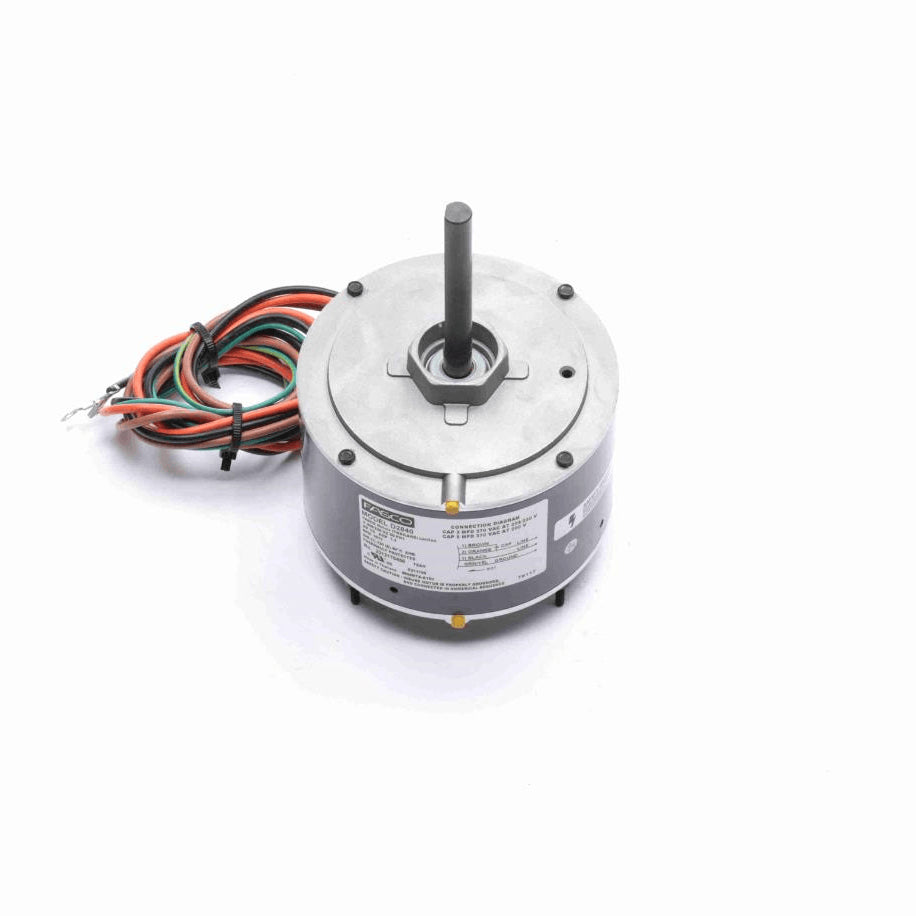

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 3 or 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 42" Leads with Flag Terminal
- Extended Mounting Studs Lead End, Hex Mounting Hub Shaft End, Shell Mounting Holes
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current1.16 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.80 LB
Country Of originThailand
Output HP1/5 Hp
Output KW0.15 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.74 in
Shaft Diameter0.500 in
Shaft Extension4.15 in
CEN
Starting MethodAcross The Line
