category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D1100
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.2
width:
3.38

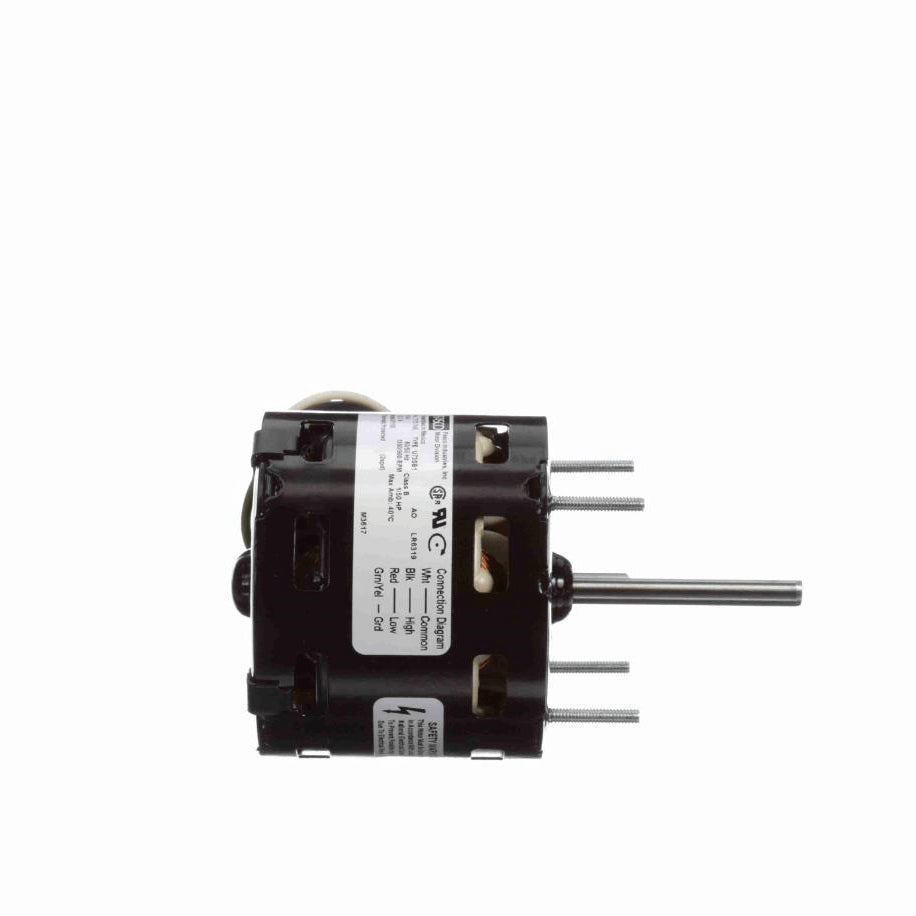

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame, Open Shell, Enclosed Opposite Shaft End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads with Quick Connect Terminal Housing
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550/900 rpm
Current1.20/0.70 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight3.20 LB
Country Of originMexico
Output HP1/50 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4/6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.57 in
Shaft Diameter0.313 in
Shaft Extension2.45 in
CEN
Starting MethodAcross The Line
