category:
Electric Motors
height:
11
length:
12
manufacturer:
Century
mpn:
D1080
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
11.6
width:
11

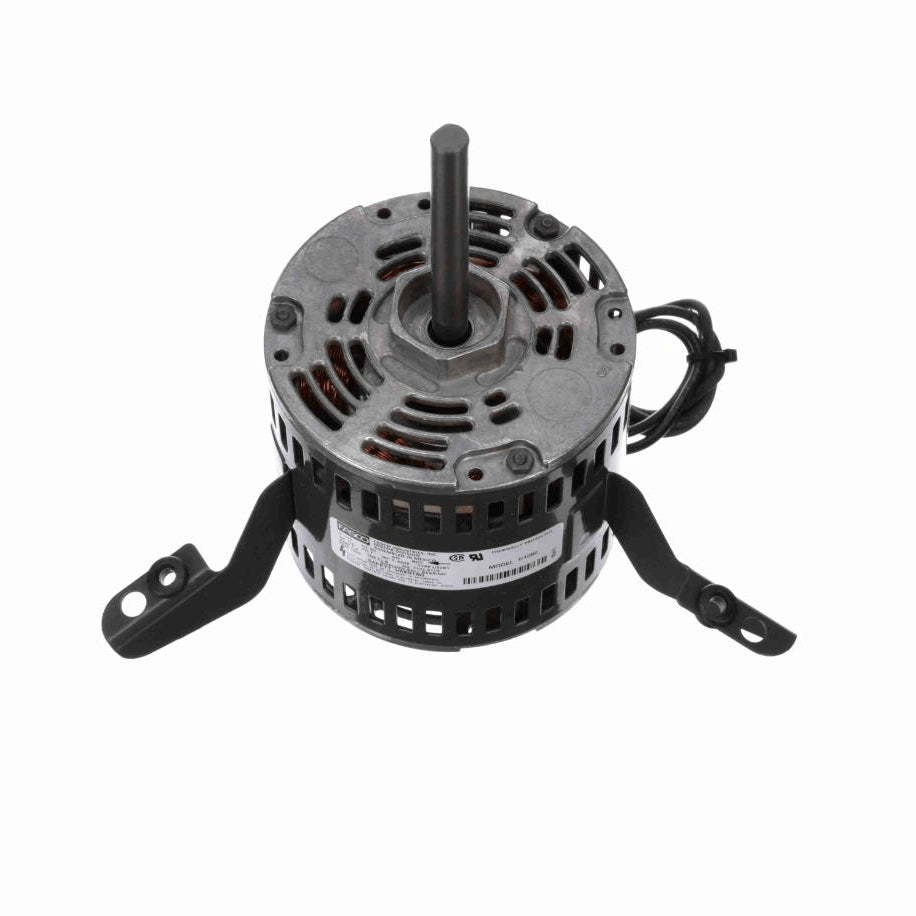

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 13" Leads
- Hex Mounting Hub Shaft End and Lead End, Flex Mount
Additional Information
Thermal ProtectionThermally Protected
Speed1050 rpm
Current7.9 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight11.60 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingLug
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.13 in
Shaft Diameter0.500 in
Shaft Extension4.00 in
CEN
Starting MethodAcross The Line
