category:
Electric Motors
height:
10
length:
6.63
manufacturer:
Century
mpn:
D260
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10.4
width:
5.13

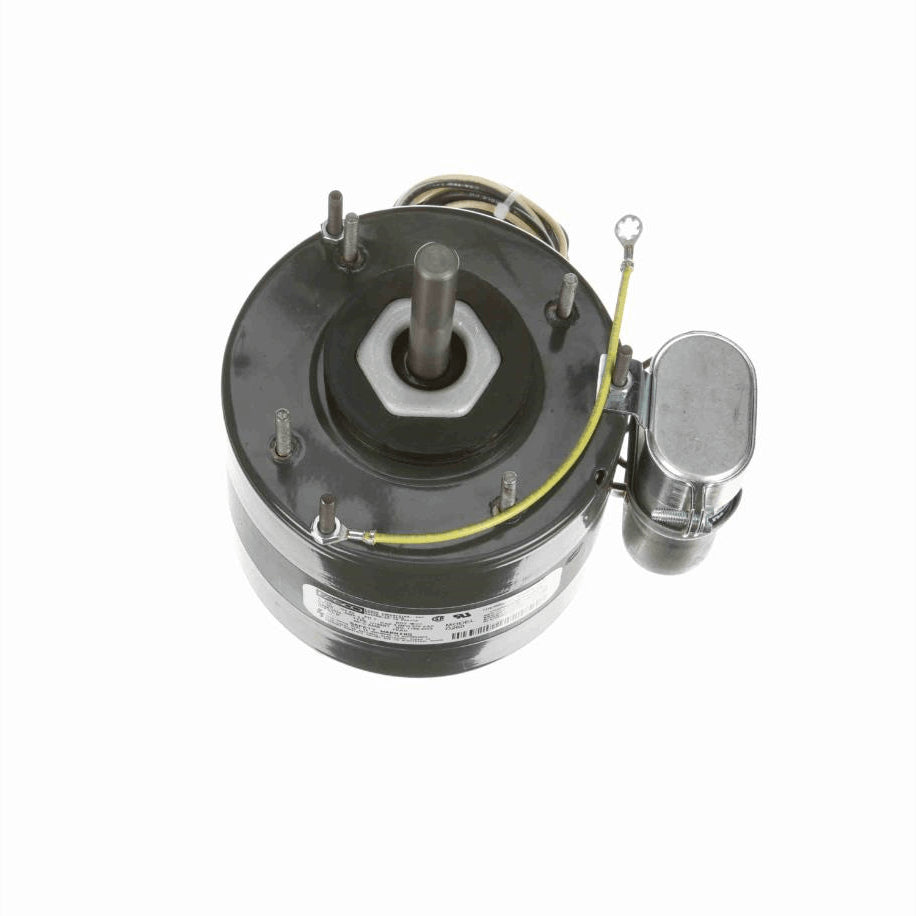

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 58" Leads with .5" Strip
- Extended Studs Shaft End, Resilient Mounting Ring Shaft end and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1075 rpm
Current2.9 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.40 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame42
EnclosureTotally Enclosed
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingResilient Rings
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension3 in
CEN
Starting MethodAcross The Line
