category:
Electric Motors
height:
5.13
length:
10
manufacturer:
Century
mpn:
D0098
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
8
width:
5.13

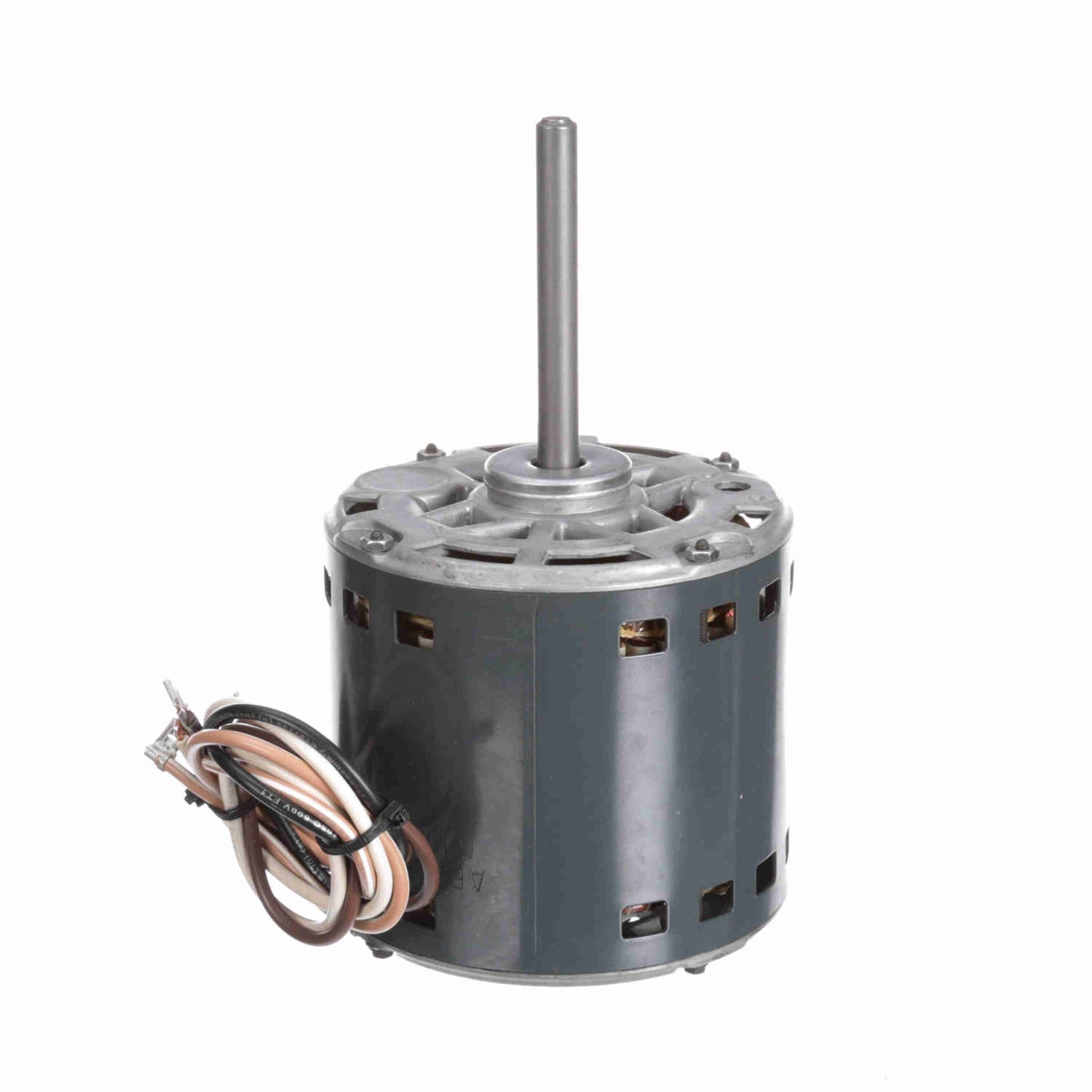

Product Overview
- OEM Direct Replacement Moto
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 32" Leads
- Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current2.5 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight8.00 LB
Country Of originMexico
Output HP1/8-1/10-1/12 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingRound Belly Band
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.30 in
Shaft Diameter0.500 in
Shaft Extension3.7 in
CEN
Starting MethodAcross The Line
