category:
Electric Motors
height:
5.63
length:
15
manufacturer:
Century
mpn:
D847
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
10.85
width:
5.63

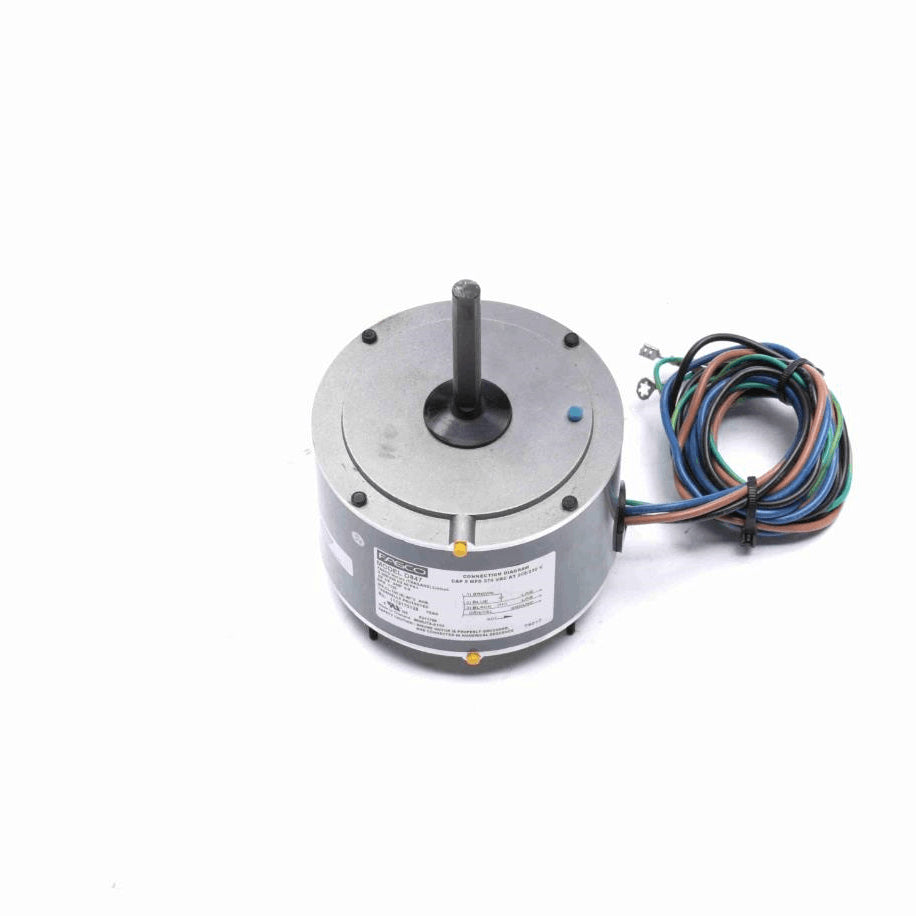

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 54" Power Leads with Flag Terminal, 54" Capacitor Lead with Quick Connect Terminal
- Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionAutomatic
Speed1125 rpm
Current0.63 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight10.85 LB
Country Of originThailand
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.78 in
Shaft Diameter0.500 in
Shaft Extension3.46 in
CEN
Starting MethodAcross The Line
