category:
Electric Motors
height:
10
length:
6.5
manufacturer:
Century
mpn:
D264
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
7.8
width:
5.13

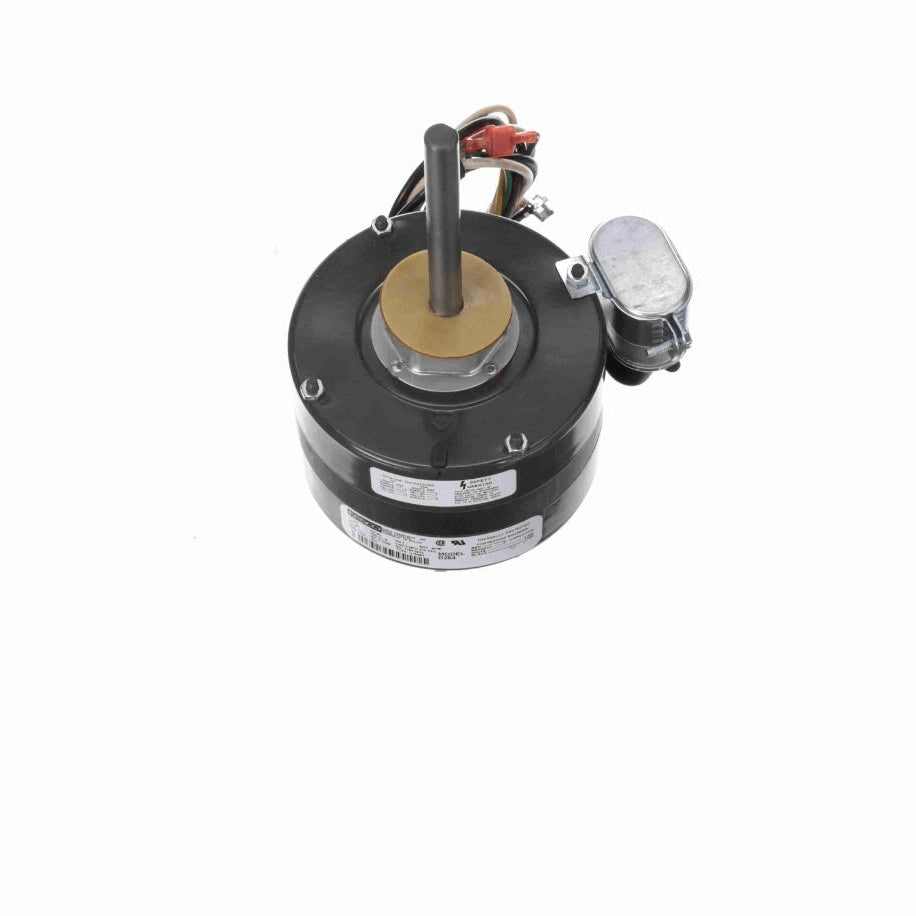

Product Overview
- OEM Direct Replacement Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Enclosed Shaft End Frame and Shell, Open Lead End End-Frame, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 31" Leads with Flag Terminal
- Hex Mounting Hub Shaft End and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.1 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight7.80 LB
Country Of originMexico
Output HP1/8 Hp
Output KW0.10 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingHexagonal Hubs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.500 in
Shaft Extension5 in
CEN
Starting MethodAcross The Line
