category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D1119
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.2
width:
3.38

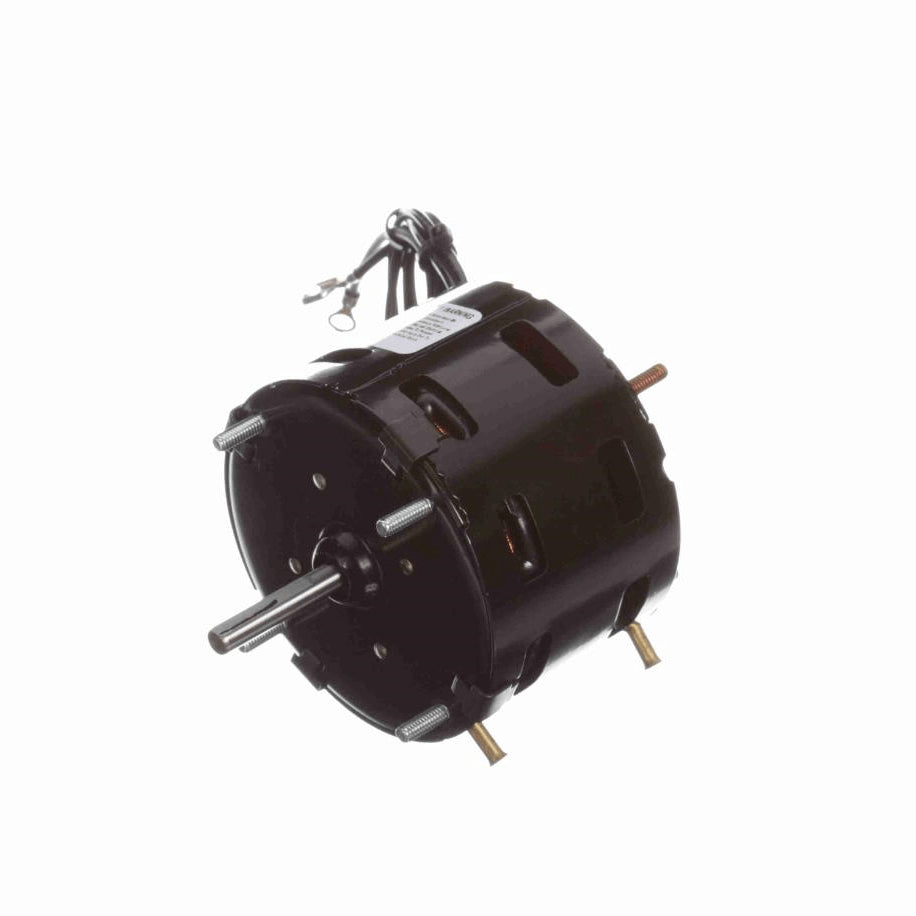

Product Overview
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 12" Lead with Spade Terminal, 12" Lead with Ring Terminal
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1300/1550 rpm
Current0.40 A
Number of Speeds1
Ambient Temperature40 °C
ULNo
Insulation ClassB
CSAY
Weight2.20 LB
Country Of originMexico
Output HP1/90 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.07 in
Shaft Diameter0.250 in
Shaft Extension1.5 in
CEN
Starting MethodAcross The Line
