category:
Electric Motors
height:
6.5
length:
14.12
manufacturer:
Century
mpn:
D2871
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
20.4
width:
6.38

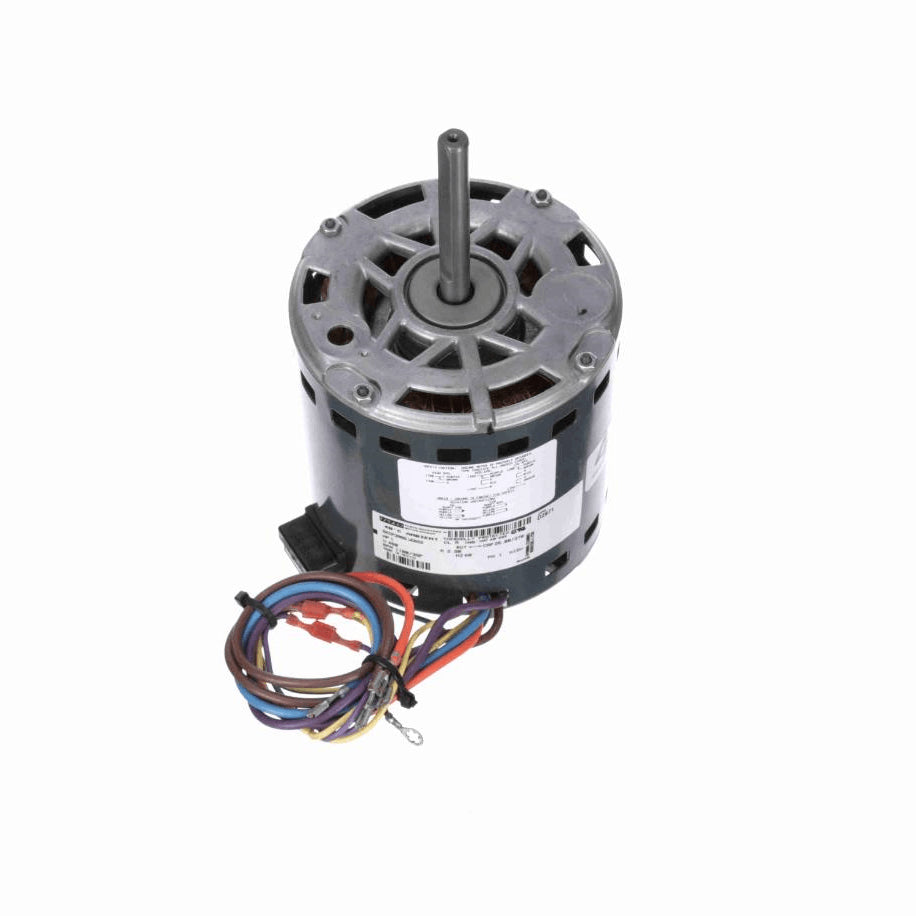

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 25 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Double Flat
- Terminal Block
- Clamp Screw Opposite Shaft End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1100 rpm
Current2.90 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight20.40 LB
Country Of originMexico
Output HP1 Hp
Output KW0.75 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise/Clockwise
MountingRound
Motor OrientationAny
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialRolled Steel
Shaft TypeDouble Flat
Frame Length5.32 in
Shaft Diameter0.500 in
Shaft Extension3.50 in
CEN
