category:
Electric Motors
height:
6.02
length:
15
manufacturer:
Century
mpn:
D915
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
19
width:
6.04

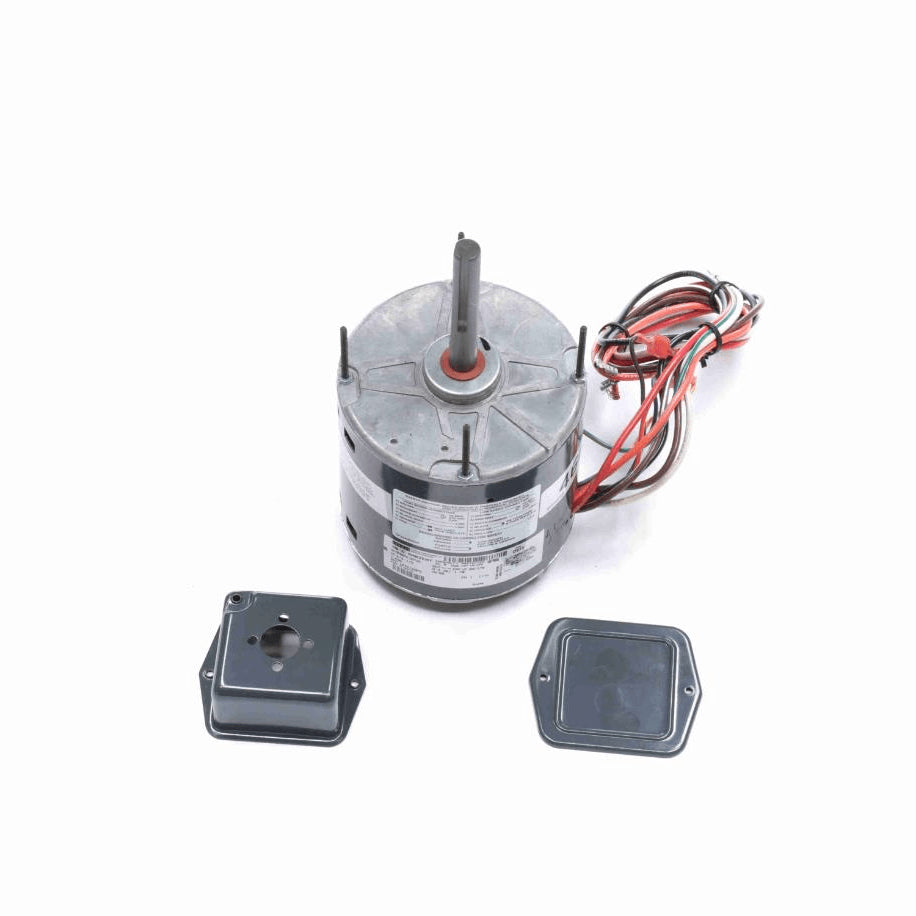

Product Overview
- OEM Direct Replacement Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Enclosed Shaft End End-Frame, Open Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 5/8" Diameter Shaft with Flat and Keyway
- 27" Leads, Conduit Box Supplied with Motor
- Clamp Screws Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1075 rpm
Current2.30/ 1.70 A
Number of Speeds2
Ambient Temperature60 °C
ULRecognized
Insulation ClassB
CSAY
Weight19.00 LB
Country Of originMexico
Output HP3/4-1/2 Hp
Output KW0.56 kW
Service Factor1
Frame48
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationReversible
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed & Flat
Frame Length4.83 in
Shaft Diameter0.620 in
Shaft Extension4.00 in
CEN
