category:
Electric Motors
height:
8
length:
14.12
manufacturer:
Century
mpn:
D998
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
21.8
width:
8.38
Product Overview

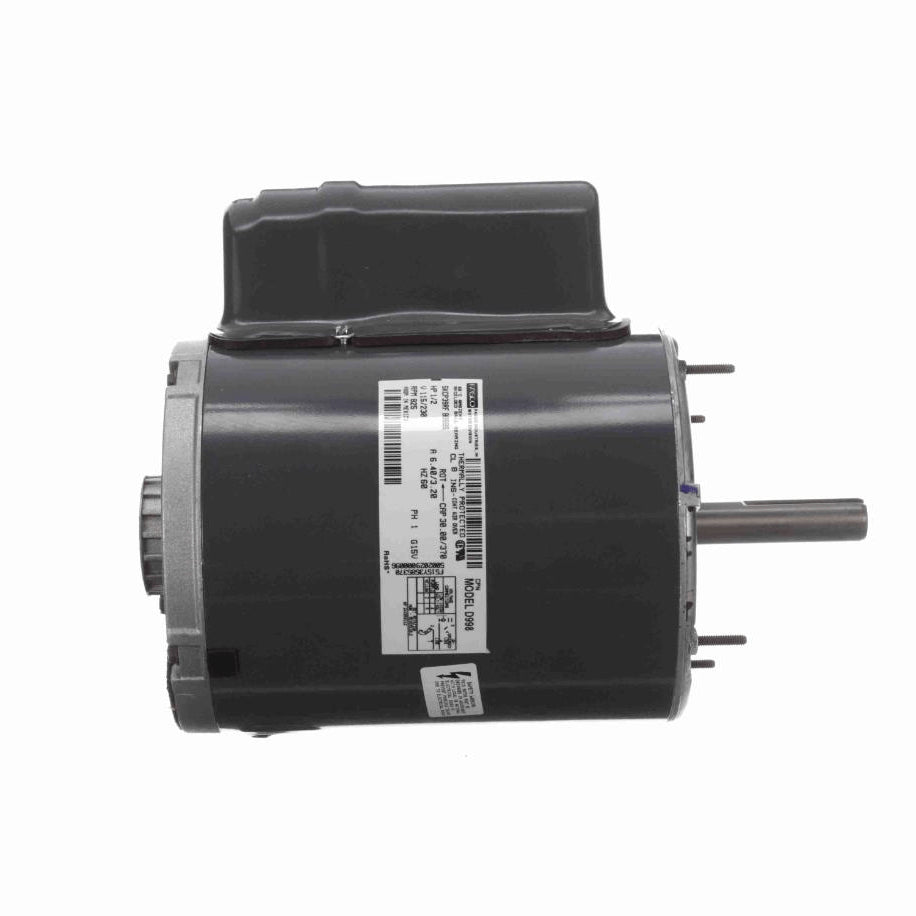

- Pedestal Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 30 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/8" Diameter shaft with Keyway
- Terminal Board
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed825 rpm
Current6.40/3.20 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight21.80 LB
Country Of originMexico
Output HP1/2 Hp
Output KW0.37 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles8
RotationCounterclockwise
MountingExtended Studs
Motor OrientationAny
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeKeyed
Frame Length6.22 in
Shaft Diameter0.620 in
Shaft Extension2.55 in
CEN
