category:
Electric Motors
height:
5.13
length:
10
manufacturer:
Century
mpn:
D0614
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
9
width:
5.13

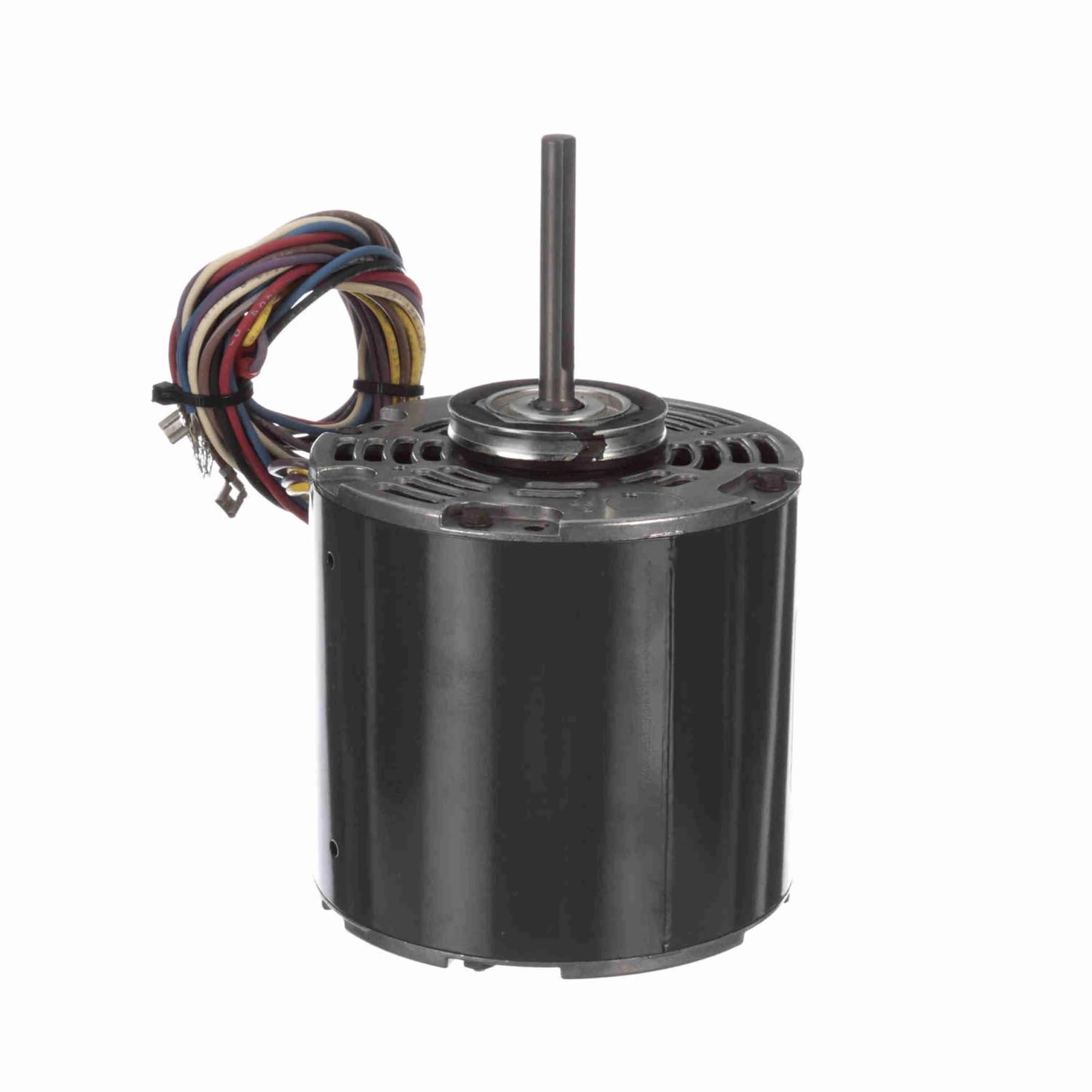

Product Overview
- Refrigeration - Unit Heater - Space Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 3/8" Diameter Shaft with Flat
- 30" Leads
- Tapped Holes for Shaft End Mounting, Resilient Ring Mounting
Additional Information
Thermal ProtectionAutomatic
Speed1550 rpm
Current1.93-0.97 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight9.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationReversible
MountingResilient Rings
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length4.50 in
Shaft Diameter0.375 in
Shaft Extension3.25 in
CEN
Starting MethodAcross The Line
