category:
Electric Motors
height:
4.5
length:
8
manufacturer:
Century
mpn:
D477
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
4.5

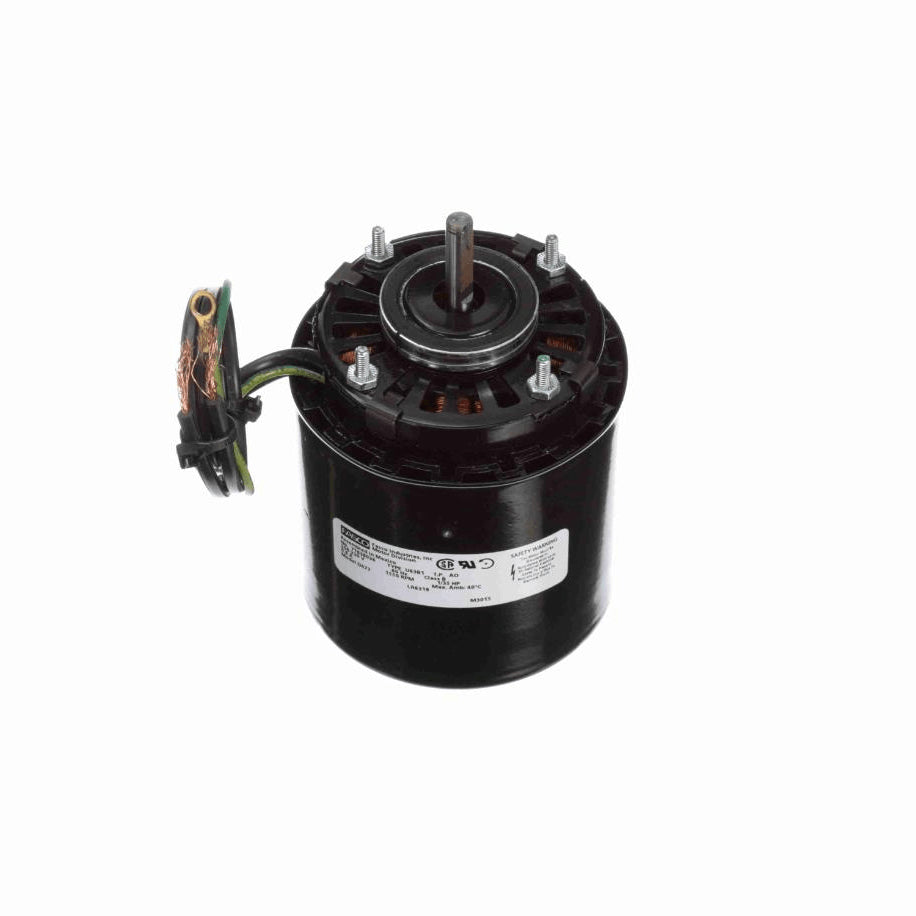

Product Overview
- Refrigeration Fan Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End, Resilient Mounting Ring Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current0.80 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/35 Hp
Output KW0.02 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat & Groove
Frame Length2.82 in
Shaft Diameter0.313 in
Shaft Extension1.65 in
CEN
Starting MethodAcross The Line
