category:
Electric Motors
height:
4.5
length:
8
manufacturer:
Century
mpn:
D429
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
2.6
width:
4.5
Product Overview

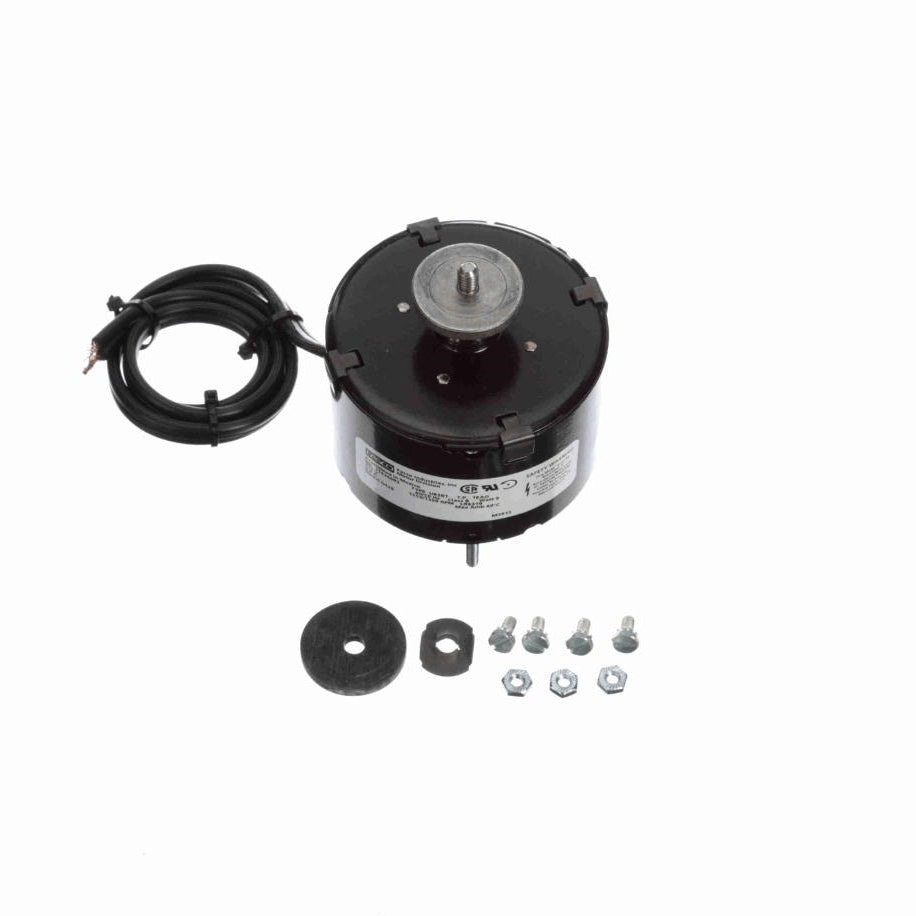

- Refrigeration Fan Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter 1/4" x 20 Right-Hand Threaded Shaft
- 22" Leads
- Extended Studs Lead End, Mounting Bracket Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1550/1300 rpm
Current0.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight2.60 LB
Country Of originMexico
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeThreaded
Frame Length2.18 in
Shaft Diameter0.313 in
Shaft Extension1.2 in
Output Watts9 W
CEN
Starting MethodAcross The Line
