category:
Electric Motors
height:
8
length:
14.12
manufacturer:
Century
mpn:
D736
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
14.2
width:
8.38
Product Description

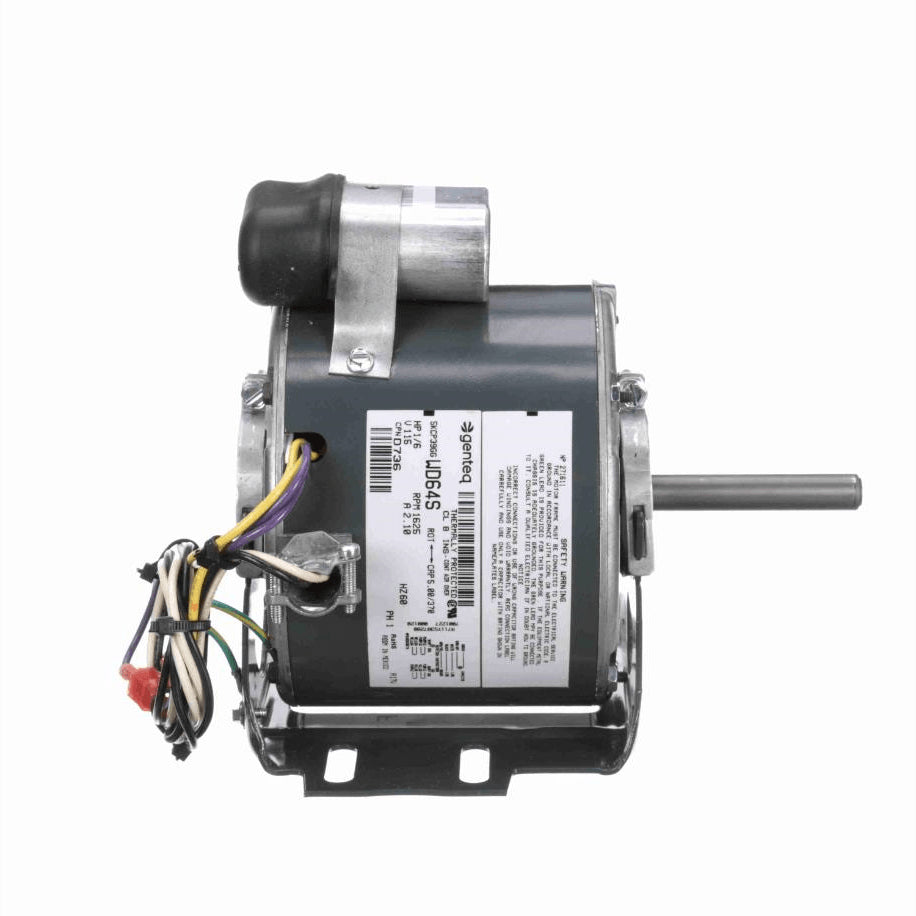

Century - D736
- Unit Heater Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 37" Leads
- Resilient Base
Additional Information
Thermal ProtectionThermally Protected
Speed1625 rpm
Current2.10 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight14.20 LB
Country Of originMexico
Output HP1/6 Hp
Output KW0.13 kW
Service Factor1
Frame48
EnclosureTotally Enclosed Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles4
RotationCounterclockwise/Clockwise
MountingResilient Base
Motor OrientationHor
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.82 in
Shaft Diameter0.500 in
Shaft Extension2.75 in
CEN
