category:
Electric Motors
height:
10
length:
5.13
manufacturer:
Century
mpn:
D148
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.2
width:
5.13
Product Description

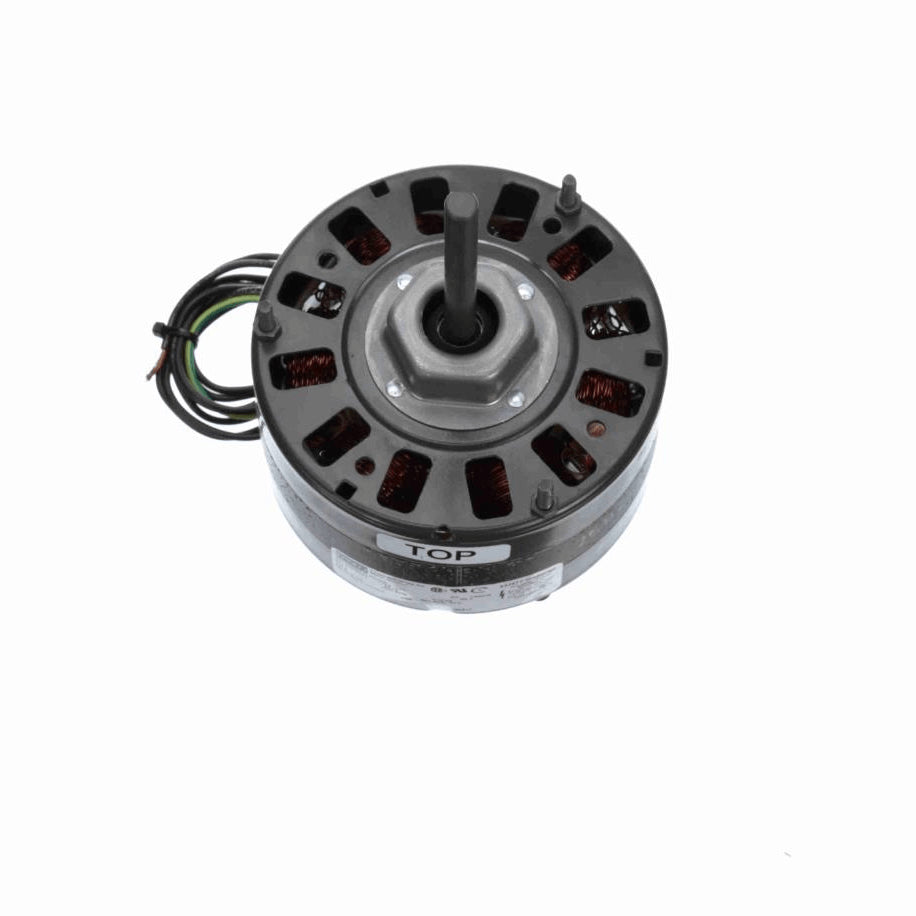

Century - D148
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class A Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1050 rpm
Current3.6 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassA
CSAY
Weight6.20 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialNa
Shaft TypeFlat
Shaft Diameter0.375 in
Shaft Extension3.50 in
CEN
Starting MethodAcross The Line
