category:
Electric Motors
height:
5.13
length:
10
manufacturer:
Century
mpn:
D148A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6
width:
5.13
Product Description

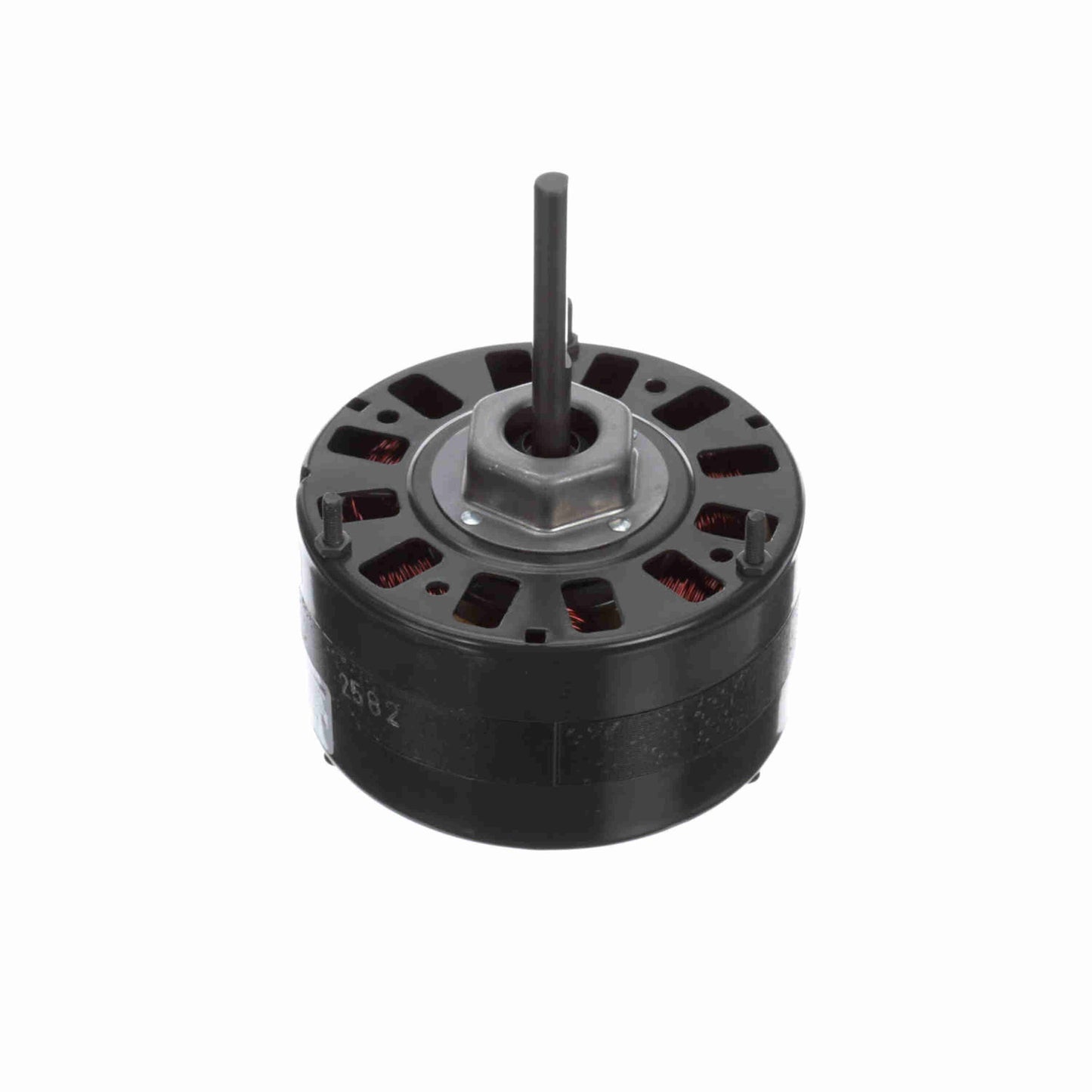

Century - D148A
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 3/8" Diameter Shaft with Flat
- 27" Leads
- Extended Studs Shaft End, Hex Mounting Hub Shaft End and Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.61 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight6.00 LB
Country Of originMexico
Output HP1/10 Hp
Output KW0.07 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.94 in
Shaft Diameter0.375 in
Shaft Extension3.5 in
CEN
Starting MethodAcross The Line
