category:
Electric Motors
height:
3.31
length:
17
manufacturer:
Century
mpn:
D0447
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
4.5
Product Description

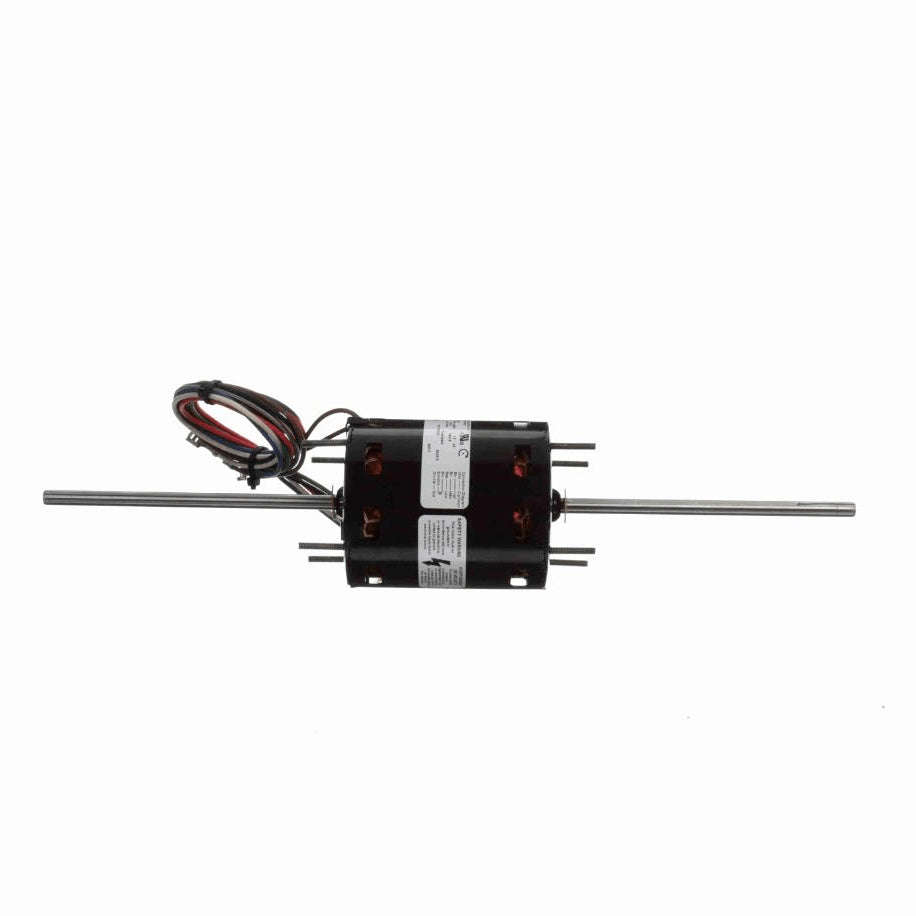

Century - D0447
- Room Air Conditioning and Double Blower Motor
- 3.3" Diameter
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Double Shaft with Flat
- 20" Leads with Terminals
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.32 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight5.00 LB
Country Of originMexico
Output HP1/12 Hp
Output KW0.06 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypePermanent Split Capacitor
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.00 in
Shaft Diameter0.313 in
Shaft Extension6.07 in
CEN
Starting MethodAcross The Line
