category:
Electric Motors
height:
5.13
length:
15
manufacturer:
Century
mpn:
D0096
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
5.13
Product Description

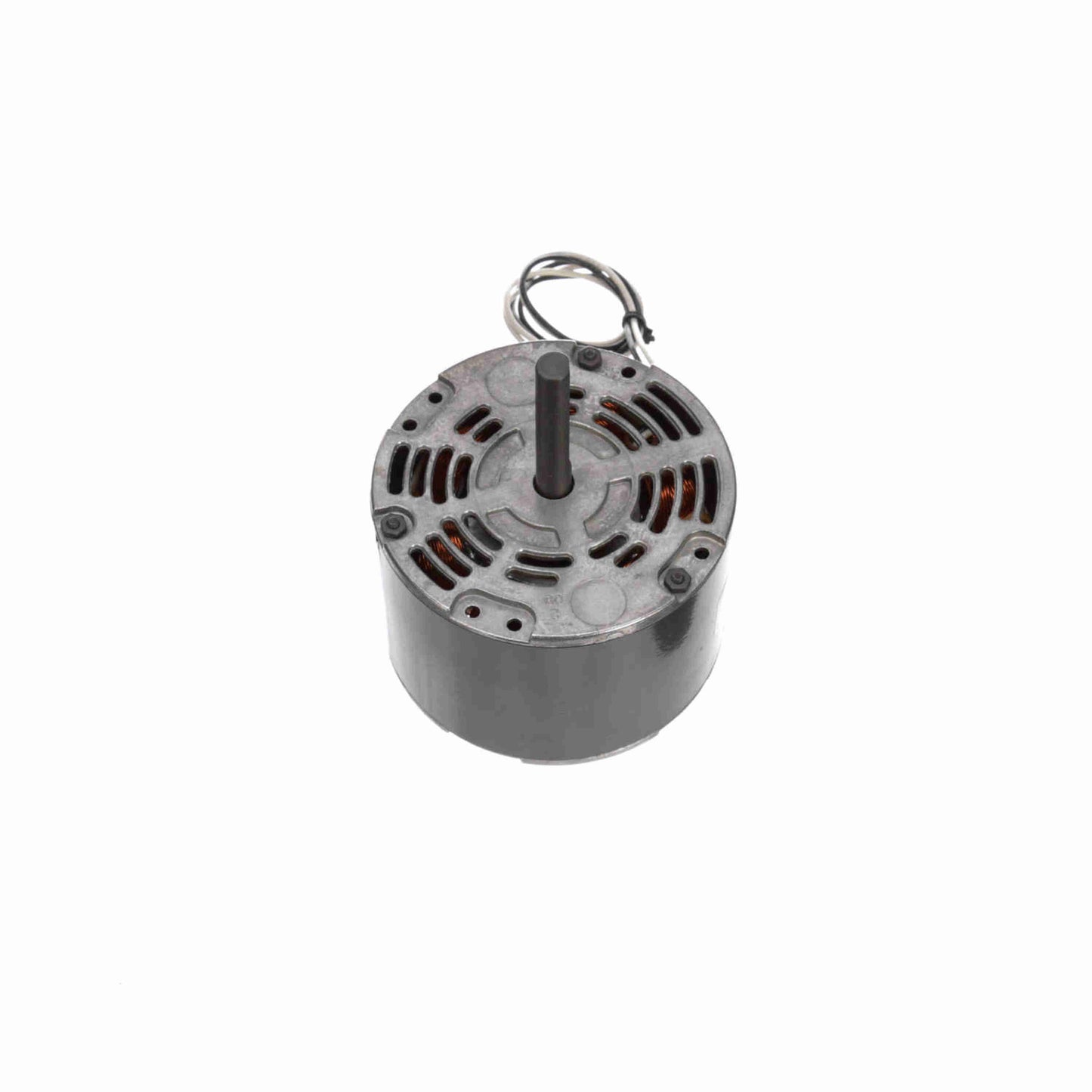

Century - D0096
- Furnace Blower - Air Handler - Fan Coil Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 3/8" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Opposite Shaft End
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current1.4 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.00 LB
Country Of originMexico
Output HP1/15-1/30 Hp
Output KW0.05 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialRolled Steel
Shaft TypeFlat
Frame Length3.56 in
Shaft Diameter0.375 in
Shaft Extension3.5 in
CEN
Starting MethodAcross The Line
