category:
Electric Motors
height:
12.63
length:
4.13
manufacturer:
Century
mpn:
D0418
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.95
width:
4.13
Product Description

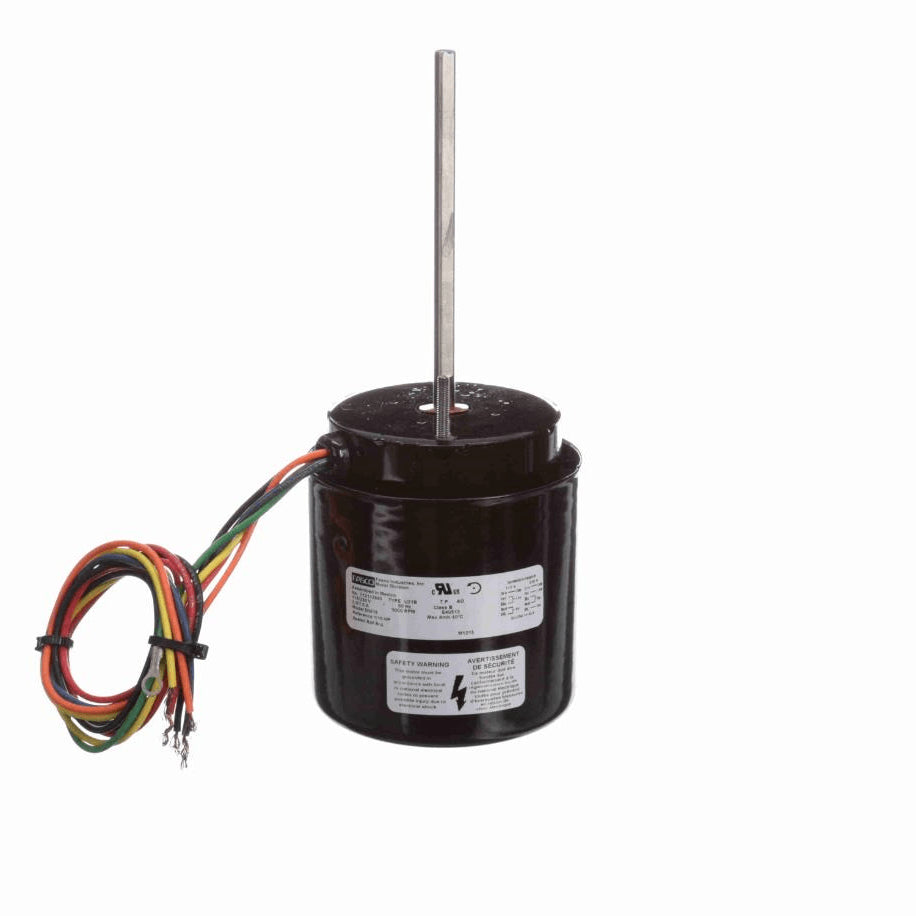

Century - D0418
- Refrigeration Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed, Internal Fan, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 20" Leads
- Extended Studs, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current2.00/1.00 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight4.95 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Fan Cooled
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.40 in
Shaft Diameter0.312 in
Shaft Extension5 in
CEN
Starting MethodAcross The Line
