availability:
In stock
category:
Electric Motors
custom_label_2:
in-stock
height:
12.63
length:
4.13
manufacturer:
Century
mpn:
D091
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5
width:
4.13
Product Description

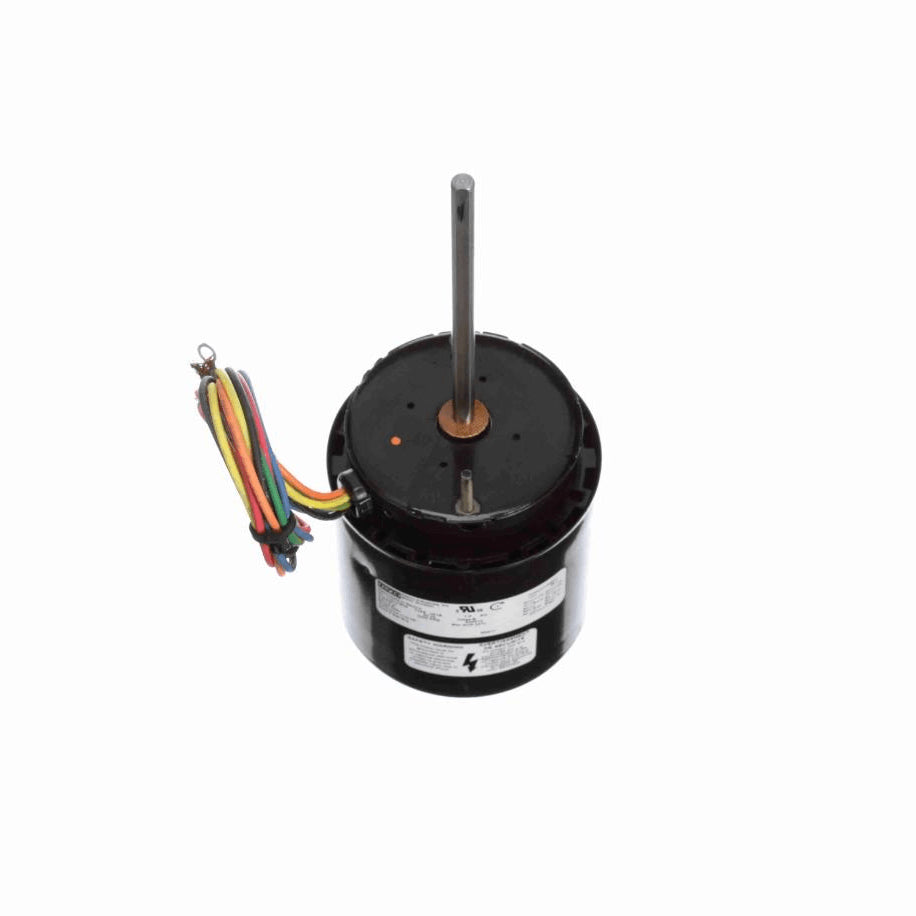

Century - D091
- Fan and Blower Duty Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed, Internal Fan, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 20" Leads
- Extended Studs, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current2.00/1.00 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight5.00 LB
Country Of originMexico
Output HP1/15 Hp
Output KW0.05 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Fan Cooled
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.50 in
Shaft Diameter0.312 in
Shaft Extension5.0 in
CEN
Starting MethodAcross The Line
