category:
Electric Motors
height:
4.5
length:
11
manufacturer:
Century
mpn:
D351
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.2
width:
4.5
Product Description

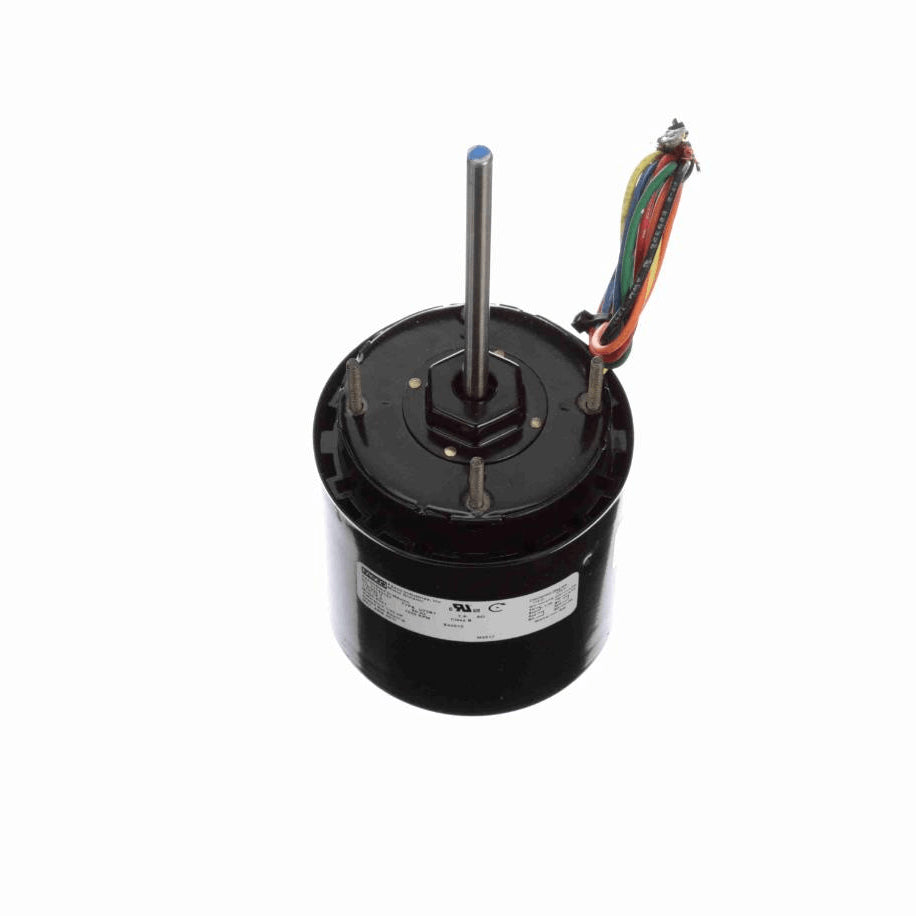

Century - D351
- Refrigeration Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Fan Cooled
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 15" Leads
- Exntend Studs Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.52/0.76 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight5.20 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Frame3.3
EnclosureTotally Enclosed Fan Cooled
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length4.22 in
Shaft Diameter0.312 in
Shaft Extension4.5 in
CEN
Starting MethodAcross The Line
