category:
Electric Motors
height:
3.94
length:
8
manufacturer:
Century
mpn:
D0041
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.92
width:
3.94
Product Description

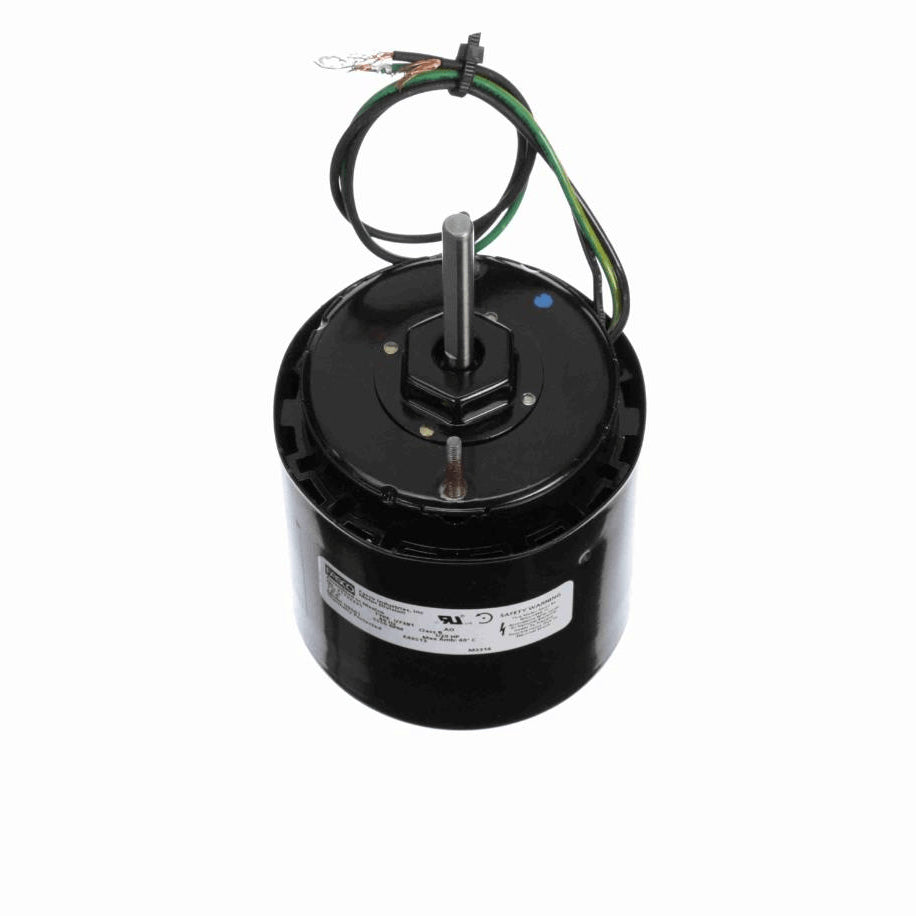

Century - D0041
- Refrigeration Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed, Internal Fan, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.60 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight4.92 LB
Country Of originMexico
Output HP1/20 Hp
Output KW0.04 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Fan Cooled
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.82 in
Shaft Diameter0.313 in
Shaft Extension2.55 in
CEN
Starting MethodAcross The Line
