category:
Electric Motors
height:
4.5
length:
8
manufacturer:
Century
mpn:
D0562
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.6
width:
4.5
Product Description

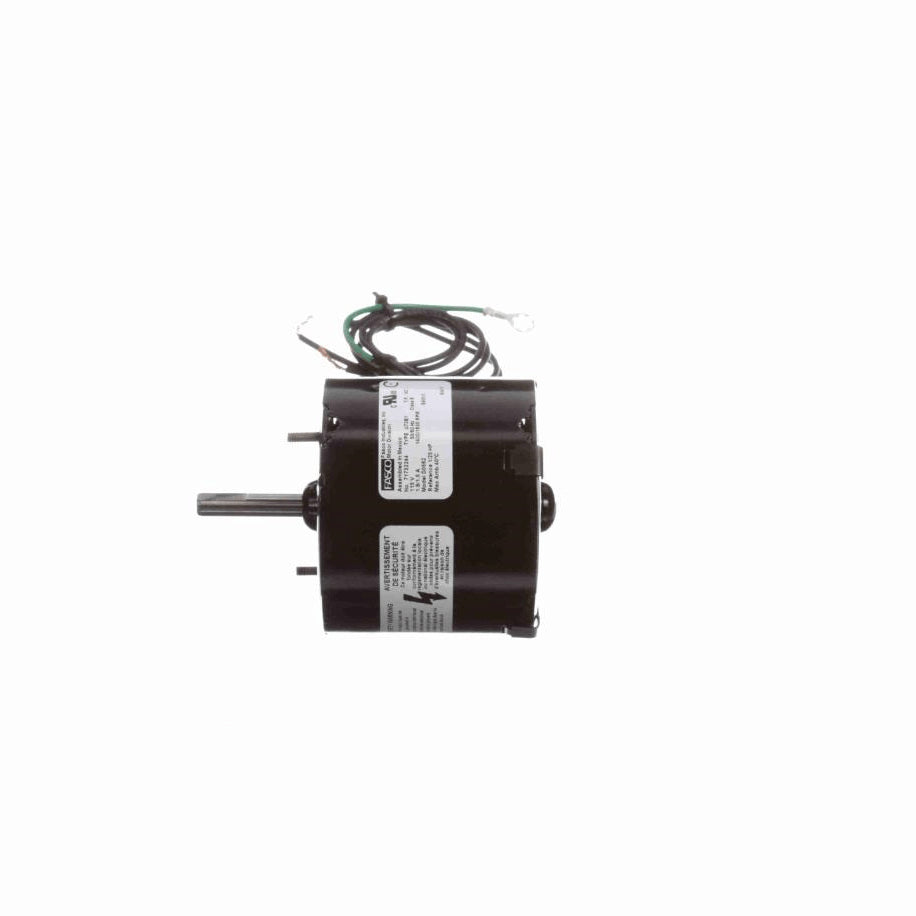

Century - D0562
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16" Diameter Shaft with Flat
- Conduit Box with 20" Leads
- Extended Studs Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1400/1630 rpm
Current1.80/1.50 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight3.60 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.79 in
Shaft Diameter0.313 in
Shaft Extension1.6 in
CEN
Starting MethodAcross The Line
