category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D3325CW
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
3.47
width:
3.88
Product Description

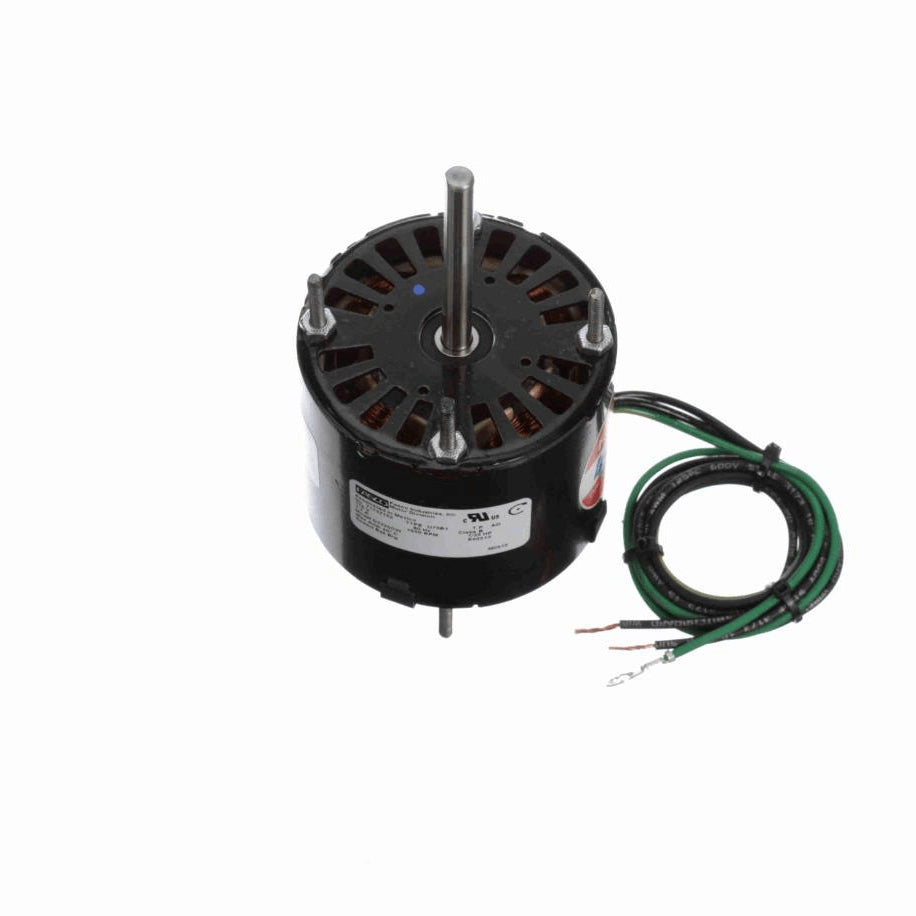

Century - D3325CW
- Fan and Blower Duty Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Shaft End and Lead End, Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 23" Leads
- Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.70 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight3.47 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationClockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.55 in
Shaft Diameter0.312 in
Shaft Extension2.6 in
CEN
Starting MethodAcross The Line
