category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D535
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
4.46
width:
3.88
Product Description

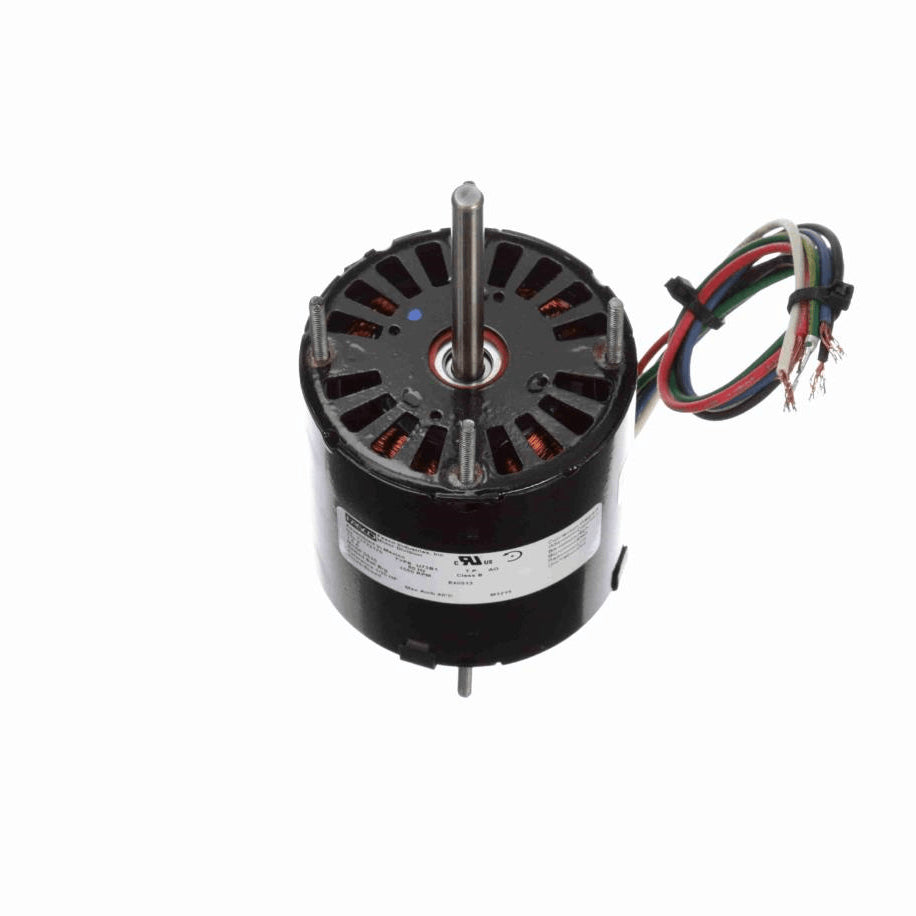

Century - D535
- Fan and Blower Duty Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 5/16" Diameter Shaft with Flat
- 12" Leads
- Exntend Studs Shaft End and Opposite Shaft End
Additional Information
Thermal ProtectionThermally Protected
Speed1550 rpm
Current1.50 A
Number of Speeds3
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight4.46 LB
Country Of originMexico
Output HP1/25 Hp
Output KW0.03 kW
Service Factor1
Frame3.3
EnclosureOpen Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles4
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingBall
Opp Drive End BearingBall
Frame MaterialSteel
Shaft TypeFlat
Frame Length3.07 in
Shaft Diameter0.312 in
Shaft Extension2.5 in
CEN
Starting MethodAcross The Line
