category:
Electric Motors
height:
5.13
length:
10
manufacturer:
Century
mpn:
D143A
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
5.2
width:
5.13
Product Description

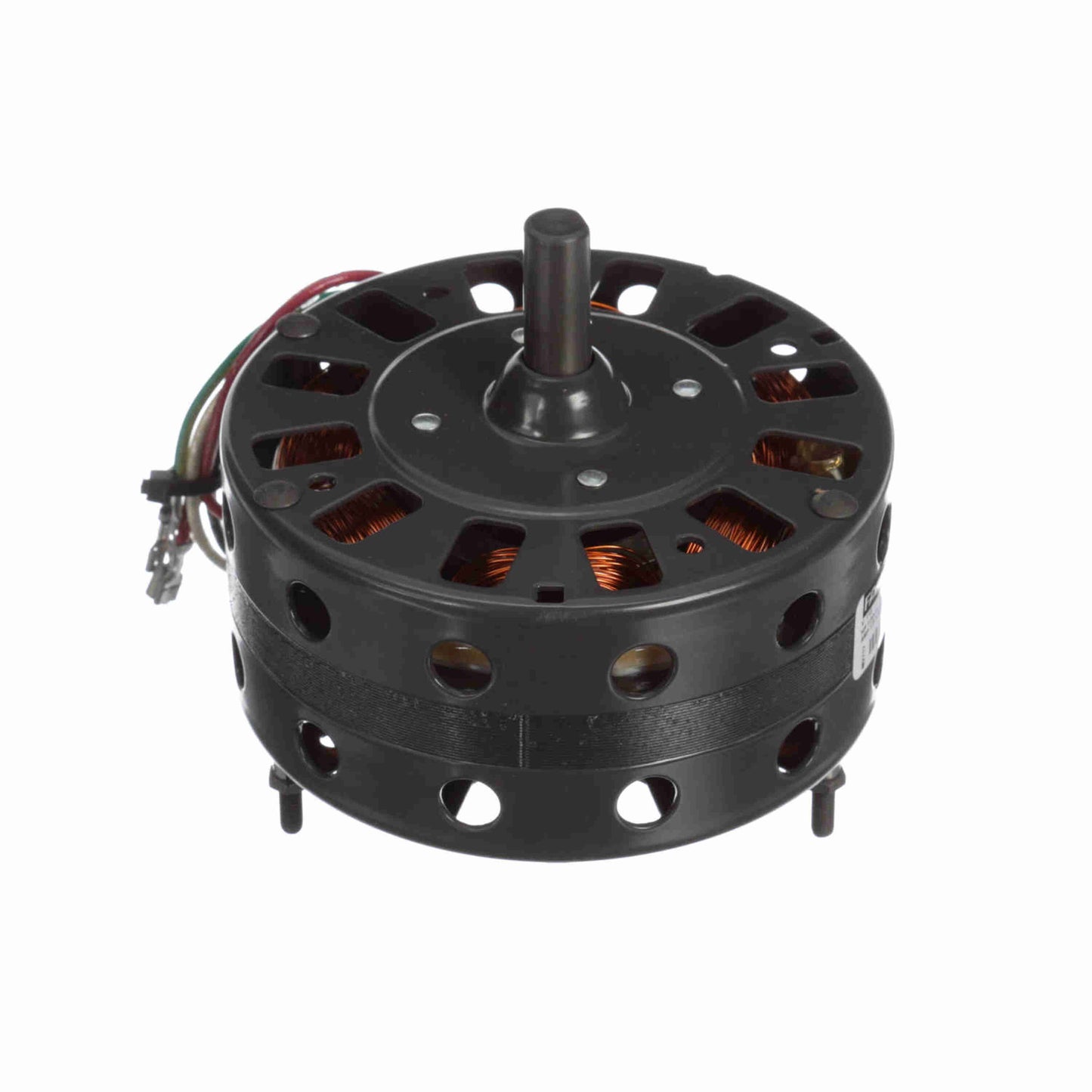

Century - D143A
- Ventilation - Unit Heater Motor
- 5" Diameter - 42 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 10" Leads with Quick Connect Terminal
- Extended Studs Lead End
Additional Information
Thermal ProtectionAutomatic
Speed1050 rpm
Current0.57 A
Number of Speeds2
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAY
Weight5.20 LB
Country Of originMexico
Output HP1/30-1/40 Hp
Output KW0.02 kW
Service Factor1
Frame42
EnclosureOpen Air Over
DutyContinuous Air Over
Electrical TypePermanent Split Capacitor
Poles6
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat
Frame Length2.80 in
Shaft Diameter0.500 in
Shaft Extension1.7 in
CEN
Starting MethodAcross The Line
