category:
Electric Motors
height:
3.38
length:
8
manufacturer:
Century
mpn:
D616
subcategory:
AC Motors - NEMA
type:
HVAC - R Motors
weight:
6.17
width:
3.38
Product Description

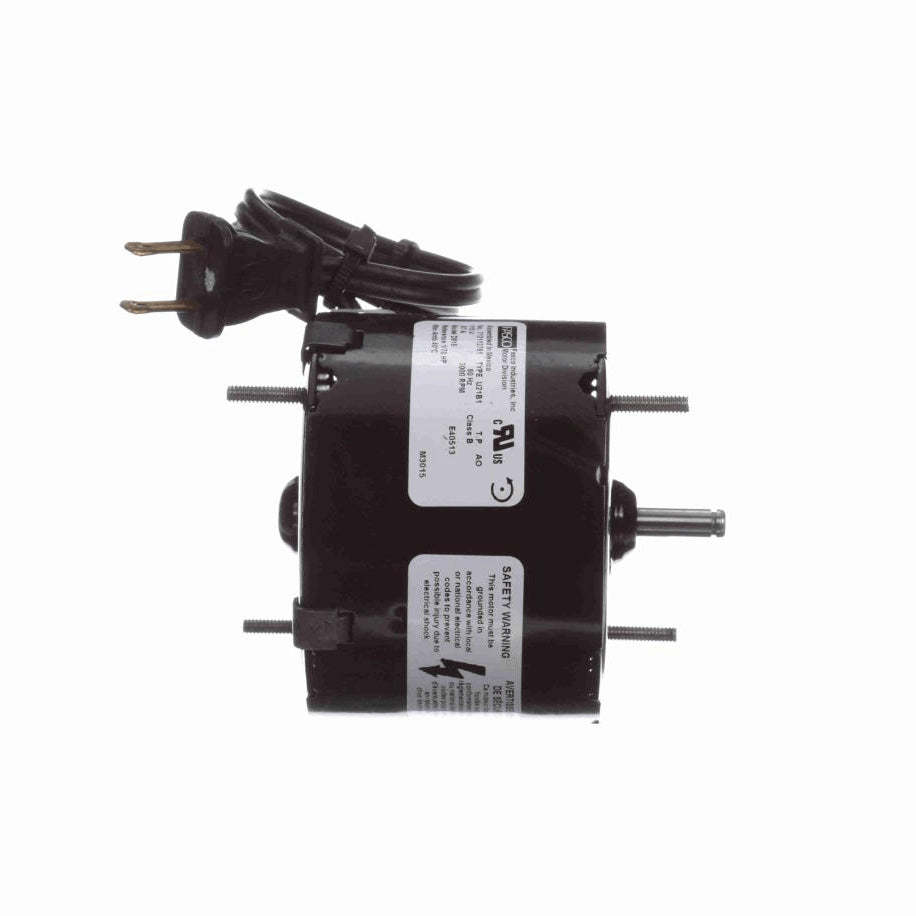

Century - D616
- OEM Direct Replacement Motor
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/4" Diameter Shaft with Flat
- 14" Leads with Molded Plug
- Extended Studs Shaft End and Lead End
Additional Information
Thermal ProtectionThermally Protected
Speed3000 rpm
Current0.67 A
Number of Speeds1
Ambient Temperature40 °C
ULRecognized
Insulation ClassB
CSAN
Weight6.17 LB
Country Of originMexico
Output HP1/70 Hp
Output KW0.01 kW
Service Factor1
Frame3.3
EnclosureTotally Enclosed Air Over
DutyAir Over
Electrical TypeShaded Pole
Poles2
RotationCounterclockwise Shaft End
MountingExtended Studs
Drive End BearingSleeve
Opp Drive End BearingSleeve
Frame MaterialSteel
Shaft TypeFlat Groove
Frame Length2.24 in
Shaft Diameter0.250 in
Shaft Extension1 in
CEN
Starting MethodAcross The Line
