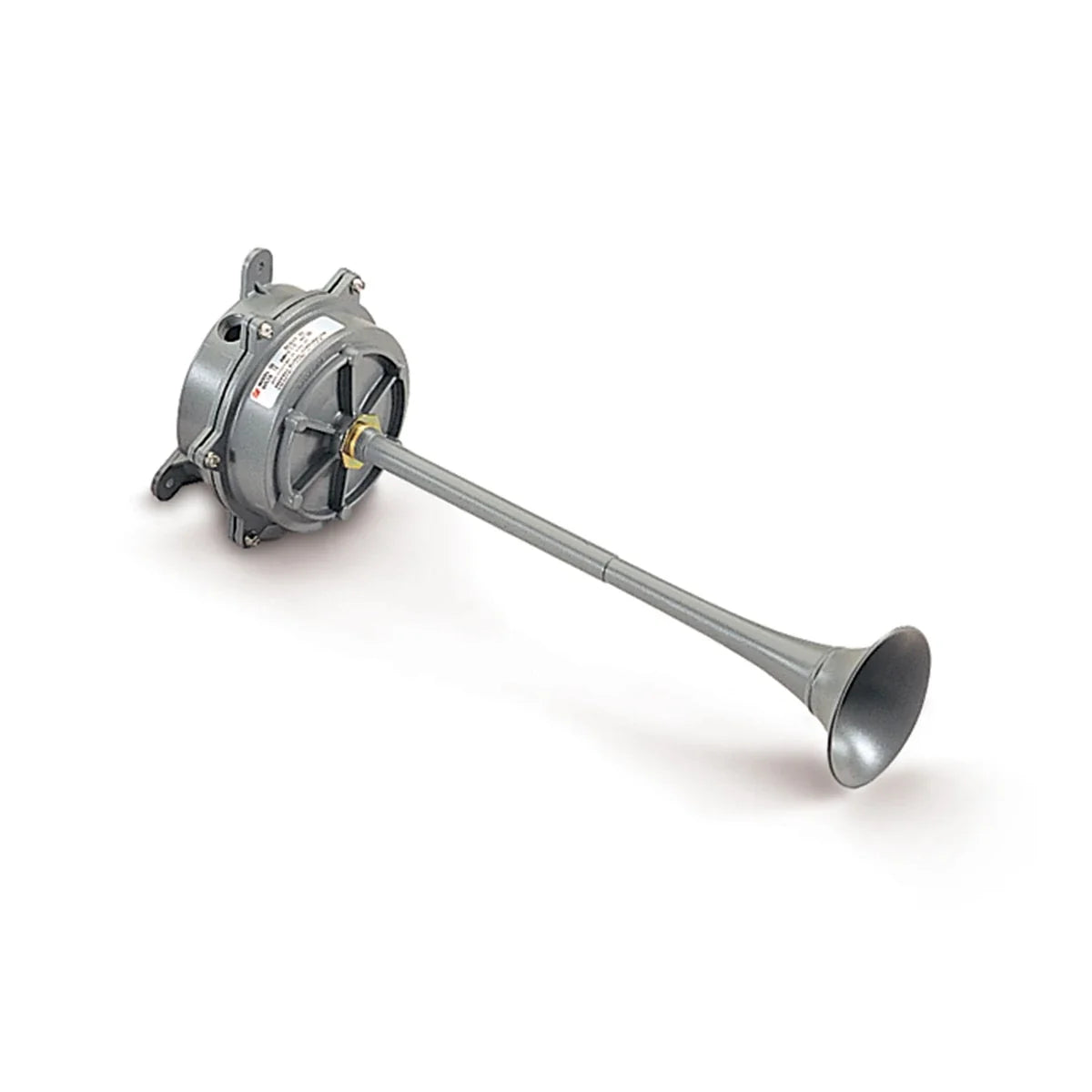

Federal Signal 56-048-1 And 56 Resonating Horns, Gray

Product Description

Federal Signal - 56-048-1

Models 55 and 56 are resonating horns that produce sound by means of a diaphragm, which resonates a column of air. With greater output than a vibrating horn, the resonating horn can be used wherever a louder, more powerful alert is needed.

These projectors are designed to match the frequency of the vibrating diaphragm to produce a smooth tone. The housings are tapped for 1/2" conduit.

Models 55 and 56 have sufficient output to penetrate through high ambient noise levels and have a duty cycle of five minutes on, five minutes off.

Features

• Model 55 - 24VAC and 120VAC
• Model 56 - 24VDC, 125VDC and 250VDC
• Model 55 produces 105 dBa @ 10' (115 dBa @ 1m)
• Model 56 produces 106 dBa @ 10' (116 dBa @ 1m)
• Corrosion resistant cast aluminum housing and spun brass projector
• Indoor or outdoor use
• Weatherproof, water- and dust-tight
• Swivel bracket included
• Type 3R enclosure
• Model 55-120-1 is UL and CSA Certified
