category:
Visual Signals
country_of_origin:
US
manufacturer:
Federal Signal
mpn:
PM22L-012-024C-Q
subcategory:
Panel Mount Signals
upc:
782979252054
Product Description

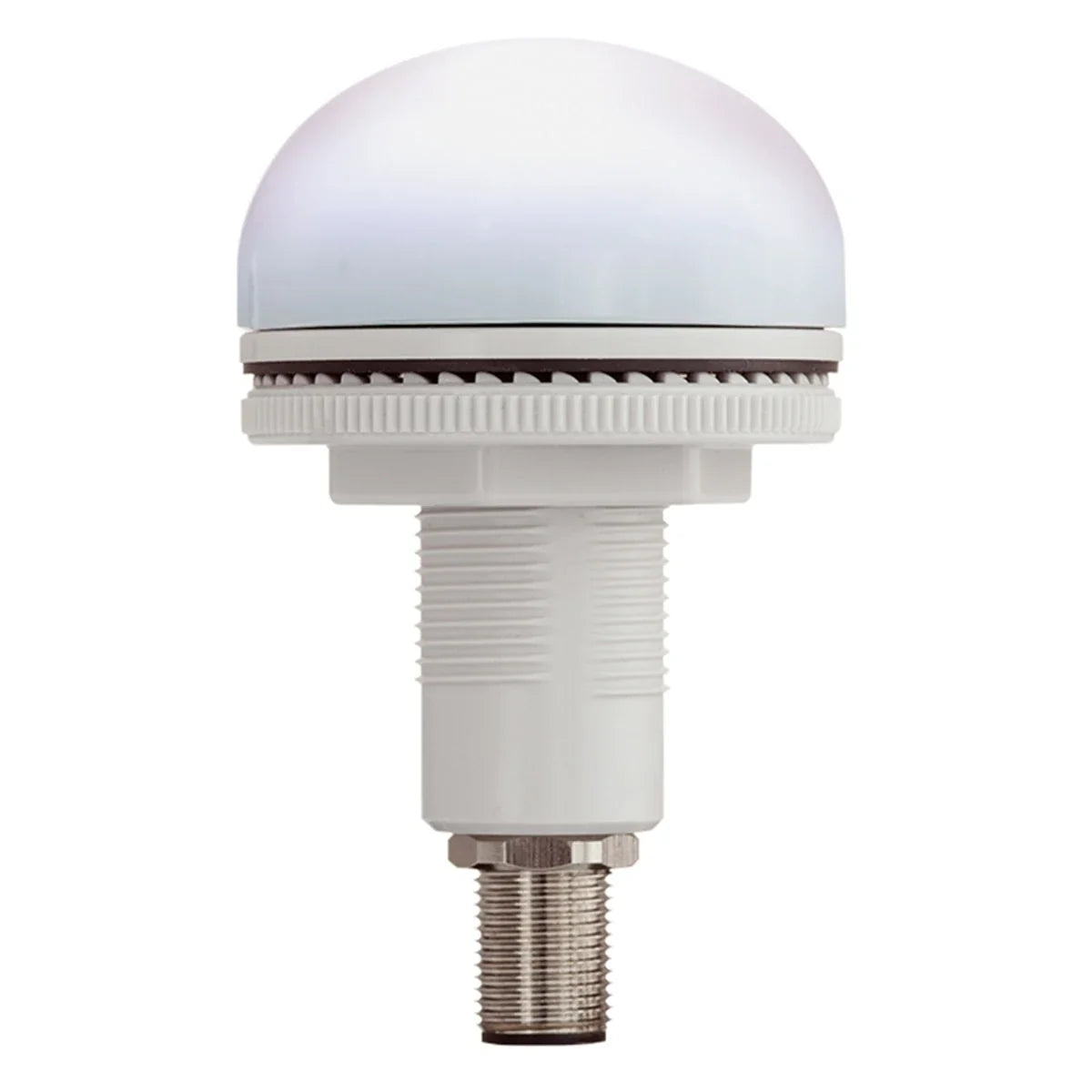

Federal Signal - PM22L-012-024C-Q
Model PM22L is a multifunctional panel mount LED that offers seven flash patterns, controllable via independent electric contacts. It is available in 12-24VAC/DC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q).
The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.
Features
- Available in 12-24 Vac/dc
- Seven flash patterns: steady, slow flashing, fast flashing, double flash, triple flash, strobe, and random
- 360-degree light-diffusing design
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000-hour LED
- Type 4X, IP66 enclosure
- IP69K compliant
- CE and UKCA compliant
- UL and cUL Listed
Additional Information
Enclosure Rating ProdType 4X, IP66, IP69K
Environmental Rating ProdOrdinary Location
Flash PatternSteady/Flashing/Strobe/Random
Flashes Per Minute150 (+/- 10) Flash Mode
Lamp Life Hours50000.0
Lens Color Variant0
Shipping Weight Kg0.07
Shipping Weight Lbs0.5
Visual Signals X Lens Color Variant0
Weight0.14
Weight Kg0.06
