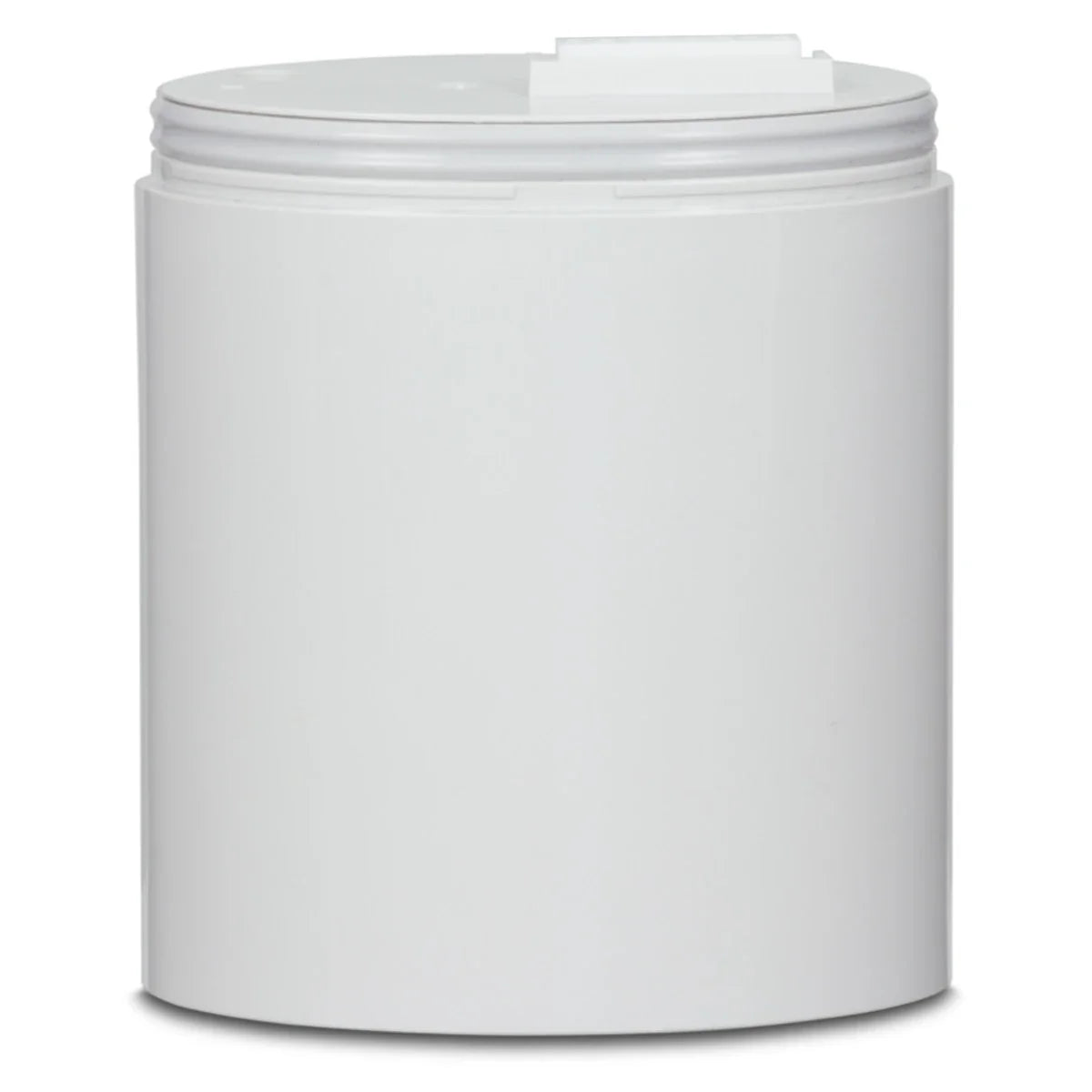

Federal Signal RSL-WMHM-120-240GY Radiant Wiring Modules, Gray

Product Description

Federal Signal - RSL-WMHM-120-240GY

RSL-WML and RSL-WMH steady light effect models offer 7 electrical contacts, allowing for up to 7 light modules: 6 light modules + 1 sound module (1 channel) or 5 light modules + 1 sound module (2 channels).

RSL-WMLM and RSL-WMHM share the same features as the RSL-WML and RSL-WMH with the added benefit of the ability to generate a flashing sequence in any of the individual modules via electrical contacts or PLC. The RSL-WMLM and RSL-WMHM have four integrated light effects: single flash, double flash, triple flash and simulated strobe.

A top cap is provided with each wiring module.

Features

• Modular design allows up to (7) modules: (6) light modules + (1) sound module (one channel) or 5 light modules + 1 sound module (two channels)
• Steady effect for models WML or WMH
• Four flash patterns available in models WMLM or WMHM
• Available in 12-24 Vac/dc or 120-240 Vac
• Available in gray or black housings
• Indoor/outdoor use
• Type 4X, IP65 enclosure when installed with both gaskets included with each module
• IP69K compliant when installed with both gaskets included on each module
• CE Certified
• UL and cUL Listed
