category:
Full Product Range
height:
4.8
length:
16.85
manufacturer:
Fein
mpn:
72323012635
subcategory:
Dividing, Sawing & Cutting
width:
11.89
Product Overview

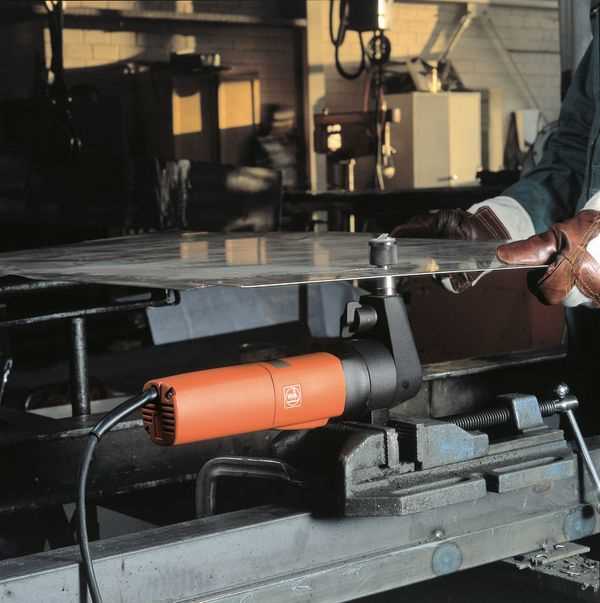

- Best suited for grooves and cut-outs in sheet metals, tool can turn on the spot.
- Cutting direction can be adjusted in three 90° steps without the need for tools.
- QuickIN rapid change system for rapid, tool-free punch and die changes.
- Optimum power-to-weight ratio.
- Long tool life, punches can be reground.
- Motor with outstanding performance and durability.
- Warp-free cutting of flat and bent sheet metal.
- Optimally suited for template cuts.
- Chip protection mesh on vent slots.
- Handle can be rotated 180°.
- 16 ft. [5 m] cable.
- Stainless steel up to 14 gauge [1.8 mm].
- Wide range of accessories.
Additional Information
Weight7.72 [3.50] lbs[kg]
Power consumption1,200 W
Sound pressure level LpA85 dB
Sound power level LWA96 dB
Peak sound value LpCpeak100 dB
Vibration value 1 ahv 3-way8,9 m/s²
Strokes750 spm
Cutting speed4.3 [1.3] ft/min[m/min]
Steel 58,000 lbf/in²0.1378 [3.5] in[mm]
Steel 87,000 lbf/in²0.0906 [2.3] in[mm]
Steel 116,000 lbf/in²0.0709 [1.8] in[mm]
Non-ferrous metals up to 36,000 lbf/in²0.1378 [3.5] in[mm]
Cutting width9/16 [14] in[mm]
Immersion with die1-3/16 [30] in[mm]
Radius of smallest curve (inside/outside)1/4 [7] / in[mm]
Power output750 W
Cable with plug16.4 [5] ft[m]
