Fein

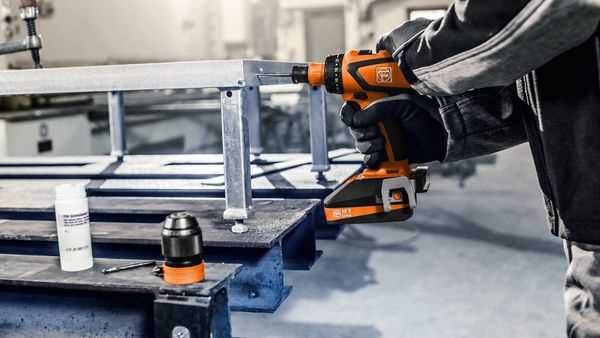

Fein 71161161090 Cordl.Drill/Driver Ascm18Qm 18V N

Fein 71161161090 Cordl.Drill/Driver Ascm18Qm 18V N

Dropship

SKU SKU:kpi040-71161161090

Regular price $479.95 USD
Regular price Sale price $479.95 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Full Product Range
height: 5.12
length: 12.21
manufacturer: Fein
mpn: 71161161090
subcategory: Drilling & Screwdriving
width: 18.9

Product Description

Fein - 71161161090

  • Fully encapsulated and dustproof brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
  • 4-speed solid metal gearbox. Optimum speeds for drilling in metal and driving self-drilling screws.
  • QuickIN MAX accessory interface for all QuickIN and QuickIN MAX accessories. Fast change between applications.
  • High torques up to 797 [90] in/lbs[Nm].
  • Includes QuickIN solid metal drill chuck (1,062 [120] in/lbs[Nm]) with carbide jaws and high clamping force.
  • Optimal speed (3,850 rpm) in 4th gear for small diameters.
  • Optimal speed (1,950 rpm) in 3rd gear for 3/8 [8] in[mm] dia.
  • Cut threads efficiently in 1st gear.
  • Electronic torque setting.
  • Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
  • 2,500 screw applications (3/16 x 1-9/16 [5 x 40] in[mm] in wood) with one battery charge (6 Ah).
  • One charger for all voltage classes of FEIN Li-ion batteries.
  • The battery capacity can be read directly on the battery.
  • FEIN SafetyCell technology. Protects the battery and the machine from overloading, overheating and deep discharge.

Additional Information

No load speed400 / 800 / 1,950 / 3,850 rpm
Battery voltage18 V
Battery compatibilityLi-ion / HighPower Li-ions
Battery interface18 V
Weight without battery3.31 [1.50] lbs[kg]
Battery capacity6 Ah
Max. torque (hard/soft)797 [90] / 398 [45] in/lbs[Nm]
Weight incl. battery4.85 [2.20] lbs[kg]
Sound pressure level LpA73 dB
Sound power level LWA84 dB
Peak sound value LpCpeak86 dB
Vibration value 1 ahv 3-wayah,D 1,5 m/s²
Motorbrushless
Torque steps15 + 1
Gearbox4-speed
Accessory interfaceQuickIN MAX
Chuck capacity1/16 [1.5] - 1/2 [13] in[mm]
Fastening3/8 [10] x 15-3/4 [400] in[mm]
Capacity in steel 31/32 [25] in[mm]
Capacity in wood 1-31/32 [50] in[mm]
TappingM 12
