category:
Full Product Range
height:
3.15
length:
15.55
manufacturer:
Fein
mpn:
72323860120
subcategory:
Dividing, Sawing & Cutting
width:
9.84
Product Description

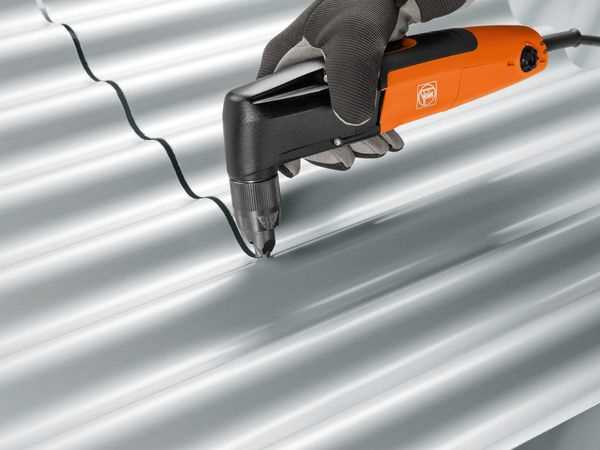

Fein - 72323860120
- Virtually indestructible. Ideal for flexible and universal use with sheet thickness up to 16 gauge [1.6 mm].
- Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
- Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
- QuickIN rapid change system.
- High cutting speed.
- Rotating punch for up to 30% longer service life.
- Low operating costs due to long tool life of punch and die.
- Motor with outstanding performance and durability.
- Chip protection mesh on vent slots.
- 16 ft. [5 m] cable.
- Stainless steel up to 22 gauge [0.7 mm].
- Retrofittable trapezoid profile set up to 6-5/16 in [160 mm] deep channels.
Additional Information
Weight3.97 [1.80] lbs[kg]
Power consumption350 W
Sound pressure level LpA82 dB
Sound power level LWA93 dB
Peak sound value LpCpeak93 dB
Vibration value 1 ahv 3-way8,8 m/s²
Strokes800 - 1,500 spm
Cutting speed6.2 [1.9] ft/min[m/min]
Steel 58,000 lbf/in²0.063 [1.6] in[mm]
Steel 87,000 lbf/in²0.0394 [1.0] in[mm]
Steel 116,000 lbf/in²0.0276 [0.7] in[mm]
Non-ferrous metals up to 36,000 lbf/in²0.0984 [2.5] in[mm]
Cutting width3/16 [5] in[mm]
Immersion with die7/8 [22] in[mm]
Radius of smallest curve (inside/outside)1-1/4 [30] / 1-1/2 [35] in[mm]
Power output210 W
Cable with plug16.4 [5] ft[m]
