category:
Full Product Range
height:
9.84
length:
23.62
manufacturer:
Fein
mpn:
72704661120
subcategory:
Magnetic Base Drilling
width:
20.47
Product Description

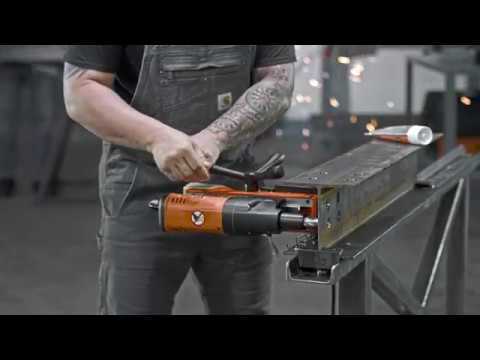

Fein - 72704661120
- Time and cost savings in large volume drilling due to digitally controlled drill feed.
- Predictable work times on contract and serial work due to repeatable and consistent drilling times.
- Universal operation, such as tapping in manual machine mode using forward/reverse and the MT3 interface.
- High-power motor with stable speed.
- Electronic speed control.
- High magnetic holding force.
- Convenient magnetic holding force display.
- Integrated coolant tank.
- Motion sensor.
- Control pads in the field of view.
- optional using accessory.
- only in manual machine operation
Additional Information
Weight36.16 [16.40] lbs[kg]
Power consumption1,200 W
Sound pressure level LpA82,1 dB
Sound power level LWA93,1 dB
Peak sound value LpCpeak96,2 dB
Tool mountMT 3
TappingM 16**
Carbide cutter max. dia.2 [50] in[mm]
HSS cutter max. dia.1-5/8 [40] in[mm]
Cutter max. drilling depth2 [50] (3 [75] )* in[mm]
Twist drill max. dia.3/4 [18] /7/8 [23] ** in[mm]
Max. countersinking dia.2 [50] ** in[mm]
Reaming max. dia.7/8 [23] ** in[mm]
Cutter holder3/4" Weldon
Cutter changetool-free
Stroke5-11/16 [145] in[mm]
Total stroke range12-3/8 [315] in[mm]
Magnetic holding force2810 [12,500] lbs[N]
Magnetic base dimensions7-11/16 [195] x 3-9/16 [90] in[mm]
Power output610 W
Cable with plug13.1 [4] ft[m]
Load speed: 1st gear130 - 260 rpm
Load speed: 2nd gear260 - 520 rpm
