category:
Full Product Range
height:
18.11
length:
26.77
manufacturer:
Fein
mpn:
72707361090
subcategory:
Magnetic Base Drilling
width:
10.63

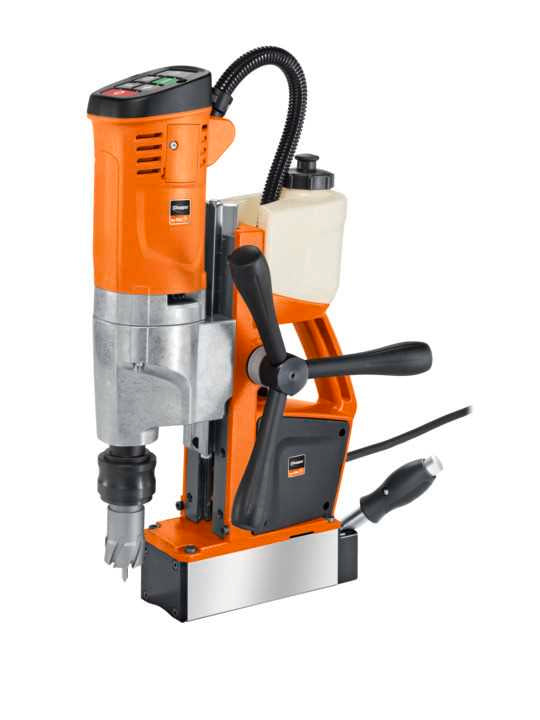

Product Overview
- Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
- Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
- Machine with extra large stroke for all drilling work, such as mag base and twist drilling, tapping, countersinking and reaming.
- Extra narrow permanent magnet with magnetic bias.
- Motion sensor.
- Simple and error-proof control concept in the operator's field of view.
- Convenient magnetic holding force display.
- Reversible.
- Integrated coolant tank.
- "Memory function" speed storage.
- Hand feed wheel can be mounted on either side.
Additional Information
Weight27.56 [12.50] lbs[kg]
Power consumption1,010 W
Full load speed130 - 520 rpm
Sound pressure level LpA86,7 dB
Sound power level LWA97,7 dB
Peak sound value LpCpeak101,2 dB
Vibration value 1 ahv 3-way<2,5 m/s²
TappingM 14
Carbide cutter max. dia.1-3/8 [35] in[mm]
HSS cutter max. dia.1-3/8 [35] in[mm]
Cutter max. drilling depth2 [50] in[mm]
Twist drill max. dia.5/8 [16] in[mm]
Max. countersinking dia.1-1/4 [31] in[mm]
Reaming max. dia.5/8 [16] in[mm]
Cutter holder3/4" Weldon
Cutter changetool-free
Stroke5-5/16 [135] in[mm]
Total stroke range10-1/4 [260] in[mm]
Magnetic holding force2023 [9,000] lbs[N]
Magnetic base dimensions7-11/16 [195] x 2-3/4 [70] in[mm]
Power output550 W
Cable with plug13.1 [4] ft[m]
