Foredom A-B-1 Carbide Bur, Ball, Small, 1/8

Foredom - A-B-1 Carbide burs with standard flutes are used for easy material removal and leave a smooth finish. These burs are ideal for use on hard wood and most metals including stainless steel, steel alloys, cast iron, etc., 1/8″ shank.

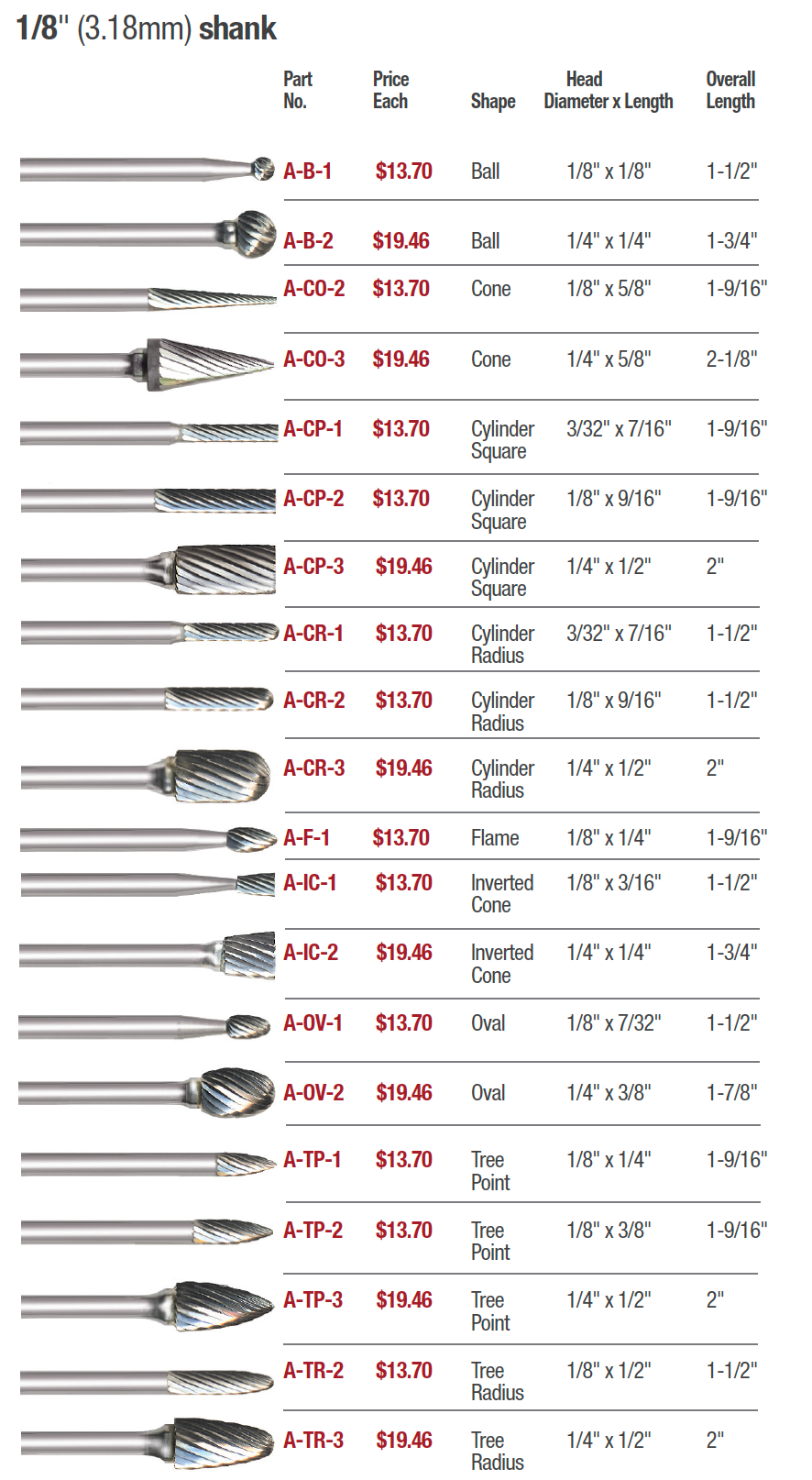

Part No. – Head Size/Shape

• A-B-1 – 1/8″ x 1/8″ Ball
• A-B-2 – 1/4″ x 1/4″ Ball
• A-CO-2 – 1/8″ x 5/8″ Cone
• A-CO-3 – 1/4″ x 5/8″ Cone
• A-CP-1 – 3/32″ x 7/16″ Cylinder Square
• A-CP-2 – 1/8″ x 9/16″ Cylinder Square

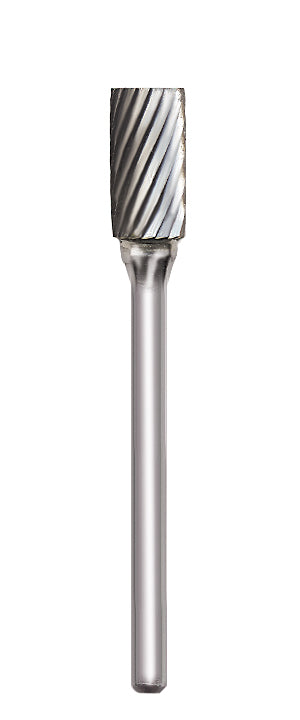

• A-CP-3 – 1/4″ x 1/2″ Cylinder Square
• A-CR-1 – 3/32″ x 7/16″ Cylinder Radius
• A-CR-2 – 1/8″ x 9/16″Cylinder Radius

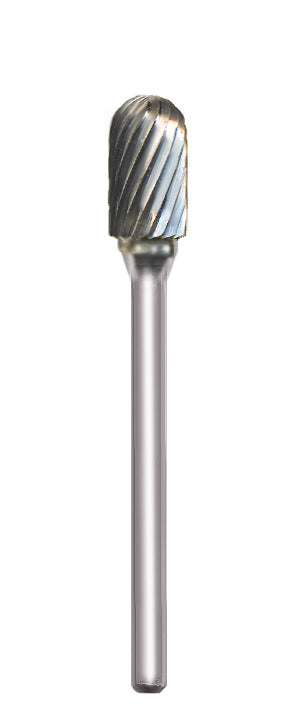

• A-CR-3 – 1/4″ x 1/2″Cylinder Radius
• A-F-1 – 1/8″ x 1/4″ Flame
• A-IC-1 – 1/8″ x 3/16″ Inverted Cone
• A-IC-2 – 1/4″ x 1/4″Inverted Cone
• A-OV-1 – 1/8″ x 7/32″ Oval
• A-OV-2 – 1/4″ x 3/8″ Oval
• A-TP-1 – 1/8″ x 1/4″ Tree Point
• A-TP-2 – 1/8″ x 3/8″ Tree Point
• A-TP-3 – 1/4″ x 1/2″ Tree Point
• A-TR-2 – 1/8″ x 1/2″ Tree Radius
• A-TR-3 – 1/4″ x 1/2″ Tree Radius

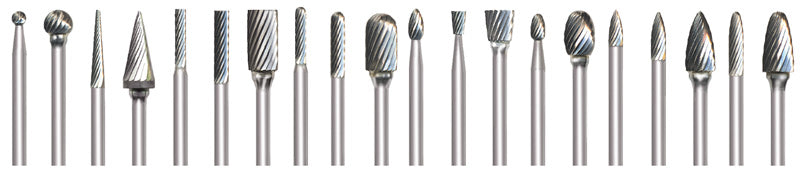

A-B-1 – A-B-2 – A-CO-2 – A-CO-3 – A-CP-1 – A-CP-2 – A-CP-3 – A-CR-1 – A-CR-2 – A-CR-3 – A-F-1 – A-IC-1 – A-IC-2 – A-OV-1 – A-OV-2 – A-TP-1 – A-TP-2 – A-TP-3 – A-TR-2 – A-TR-3

100,000 RPM Max Speed for 1/8” and smaller head diameter burs.

35,000 RPM Max Speed for 1/4” and larger head diameter carbides.
