Foredom C.EMHF-26 Control W/Dual Speed Range, Dial, 230V Aus

Product Description

Foredom - C.EMHF-26 Use Product Options Menu to Select Power Cord Plug Option: -2 for US Plug (C.EMHF-2), -21 for UK Plug (C.EMHF-21), -22 for Continental European (C.EMHF-22) or -26 for Australian Plug (C.EMHF-26).

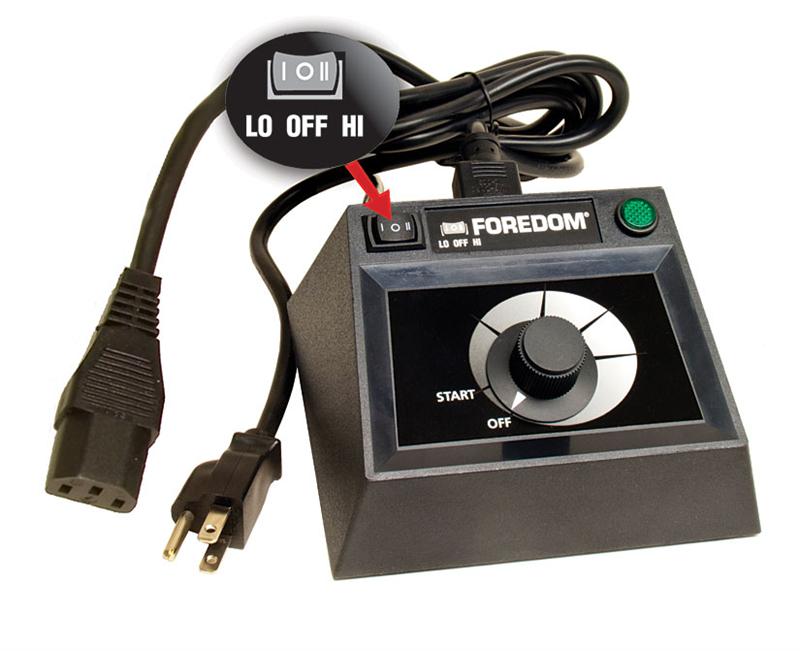

New Dual Speed Range table top speed control was designed for use with the reciprocating (not rotary) Foredom Filer. Set to ‘LO’, motor speed is restricted to between 1,000 – 10,000 RPM or 400 – 4,000 SPM – the Filer’s allowable speed range. Flipping the toggle switch to ‘HI’ permits use with rotary handpieces at regular motor speeds.

This control is also ideal for use with the reciprocating H.50 and H.50C Chisel Handpieces that have low recommended operating speeds of 1,000 – 8,000 RPM.

For use with 230 Volt M.SR, M.SRB, M.SRH and M.SRBH motors.

Can also be used with these 230 Volt Discontinued Motors: Series CC and DD, Series L and LB, Series F, Series PG and 1/8 Horsepower Series S, SB, SR and SRB motors.

5″ long, 5-7/8″ wide, 2-3/4″ high, packaged wt-3.5 lb/1.6 kg, 3 Amps, 60 Hz

Replacement
Parts: 3 amp Replacement Fuse, CP10513, is located between the cords in the back of the speed control box. This fuse is good for both 115V and 230V models. The 230V Circuit Board, CP10495-2F, can also be replaced. See Related Products below.
