Foredom K.1050-22 Micromotor Kit, Brushless, 3/32", 230V Euro

Product Description

Foredom - K.1050-22 Use Product Options Menu to Select Collet Size and Plug Option:

• Handpiece with 2.35mm (3/32″) Collet-
• K.1050-2 – North American Plug
• K.1050-21 – UK Plug CE
• K.1050-22 – Continental European Plug CE
• K.1050-26 – Australian Plug
• Handpiece with 1/8″ Collet-
• K.105018-2 – North American Plug
• K.105018-21 – UK Plug CE
• K.105018-22 – Continental European Plug CE
• K.105018-26 – Australian Plug

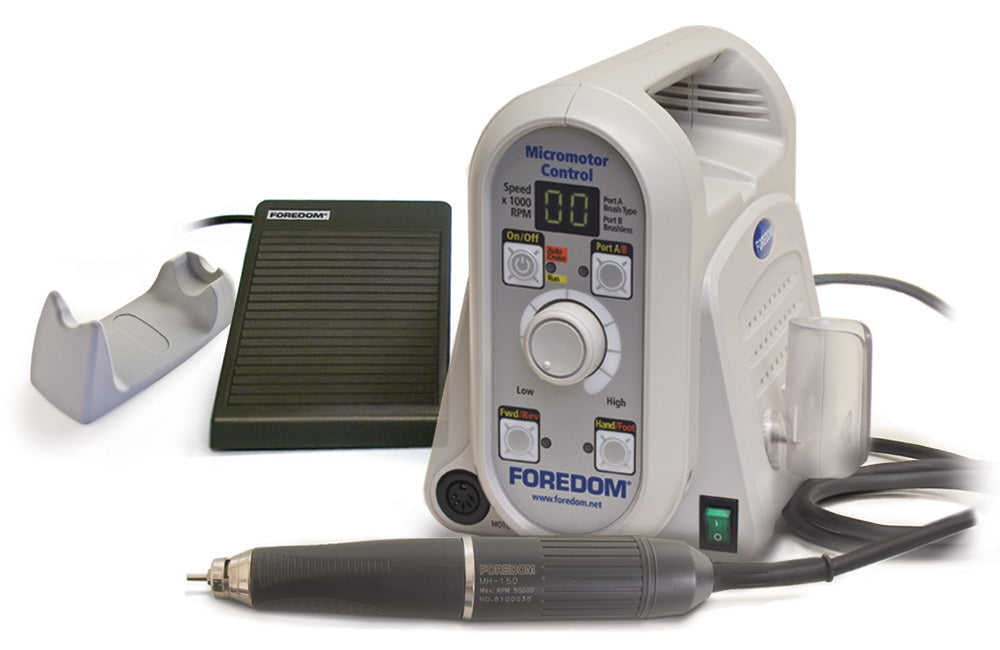

230V Dual Port K.1050-2 Kit: includes control box with digital display, handpiece with 2.35mm (3/32″) or 1/8″ collet, variable speed foot pedal, handpiece cradle, and extra fuse.

Brushless micromotor is excellent for usage at high, medium and low speeds.

• High Speed provides smooth, clean, and sharp detailing in metal and wood. It’s also great for bright-cutting, grinding, finishing, texturing, and polishing. You never need to changes the brushes on this handpiece.

• Medium Speed it is ideal for effortless and fast stock removal in wood, diestone, or acrylics.

• Low Speed offers extra control and power for stone setting and milling.

Overall Product Features-

• Two Year Limited Warranty
• Brushless motor design means carbon brushes NEVER need changing
• Maximum Torque or Watts Output 10 oz. in or 70mNm or 230W. Powerful even at minimum speeds.
• Sealed housing eliminates dust, noise, and vibration
• Control box has an additional port for using a Brush Type Micromotor Handpiece:

HP4-817-2 (230V) Control Box and Front Panel LED Specifications and Features-

• 50/60 Hz, 100VA, 5.4″ wide, 9.1″ deep, 7″ high
• Dial speed control sets precise speed and torque
• Digital display for precise speed settings:Auto cruise, Forward or Reverse rotation, Dial or Foot speed control
• Built in overload protection
• Brushless micromotor handpiece connects to port on back side of control box
• Optional brush type handpiece connects to port in front.

H.MH-150 Brushless Handpiece/Motor Specifications and Features –

• 6.3″ long, 1.06″ motor diameter, .75″ grip diameter, 8.4 oz/237.7 gr.,115 volt
• Ergonomic and brushless with long-lasting ceramic ball bearings
• Bur changes are quick and easy with a simple twist of the front section of the Handpiece
• Comes with 2.35mm (3/32″) or 1/8″ collet.

HP7-7060 Foot Speed Control –works with control box HP4-717 to vary speed from 1,000 to 50,000RPM.

• Connects to port on back side of control box
