Foredom K.1054-2 Micromotor Kit, Brushless & Brush, 3/32", 230V Us

Product Description

Foredom - K.1054-2 Use Product Options Menu to Select Collet Size for Each Rotary Handpiece:

K.1054 – 2.35 mm (3/32″) Collets in both Handpieces

K.105418 – 2.35 mm (3/32″) Collet in Brushless Handpiece AND 1/8″ Collet in Brush Type Handpiece

K.105419 – 1/8″ Collet in Brushless Handpiece AND 2.35 mm (3/32″) Collet in Brush Type Handpiece

K.105420 – 1/8″ Collets in both Handpieces

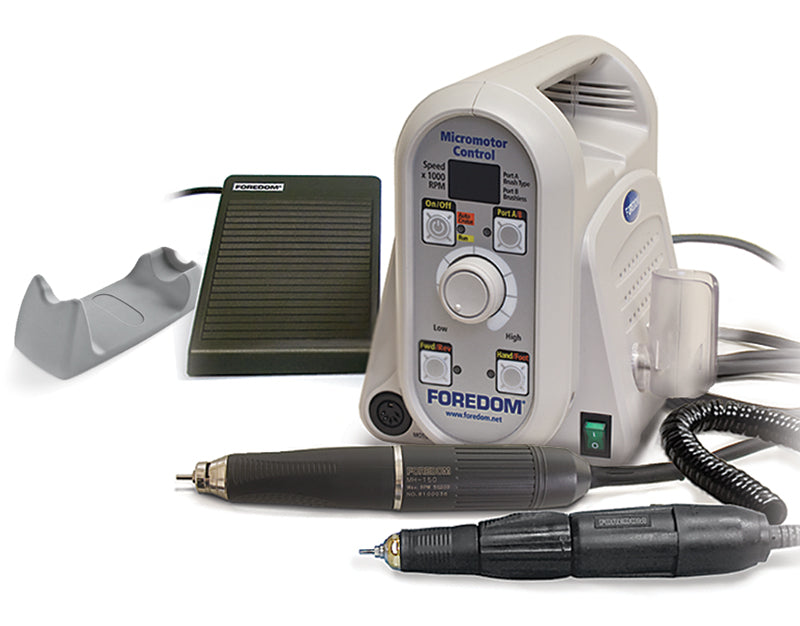

K.1054 Dual Port/Dual Handpiece Kit:

• Brushless rotary handpiece connects to Port B located in the back of the control box. It runs virtually vibration free with high torque throughout the entire speed range of 1,000-50,000 rpm. Comes with choice of 2.35mm (3/32″) or 1/8″ collet installed. See additional specs below.
• Brush type rotary handpiece operates at speeds up to 38,000 RPM and comes with choice of 2.35mm (3/32″) or 1/8″ collet installed. Connects to Port A in the front of the control. See additional specs below.
• Sophisticated control box with digital display, variable speed foot pedal, 2 handpiece cradles, and an extra fuse also included. See additional specs below.
• Two Year Limited Warranty
• Brushless motor design carbon brushes NEVER need changing
• Maximum Torque or Watts Output 10 oz. in or 70mNm or 230W. Powerful even at minimum speeds
• Sealed housing eliminates dust, noise, and vibration
• Additional port for Brush Type Micromotor Handpiece

This brushless micromotor is excellent for usage at high, medium and low speed.

• High Speedprovides smooth, clean, and sharp detailing in metal and wood. It’s also great for bright-cutting, grinding, finishing, texturing, and polishing. You never need to changes the brushes on this handpiece.
• Medium Speed is ideal for effortless and fast stock removal in wood, diestone, or acrylics.
• Low Speed offers extra control and power for stone setting and milling.

HP4-817-2 (230V) Control Box and Front Panel LED

• 50/60 Hz, 100VA, 5.4″ wide, 9.1″ deep, 7″ high
• Dial speed control sets precise speed and torque
• Digital display for precise speed setting:Auto cruise, Forward or Reverse rotation, Dial or Foot speed control
• Built in overload protection
• Brushless micromotor handpiece connects to port on back side of control box
• Brush type handpiece connects to port in front.

H.MH-150 Brushless Handpiece/Motor

• 6.3″ long, 1.06″ motor diameter, .75″ grip diameter, 8.4 oz/237.7 gr.,115 volt
• Ergonomic and brushless with long-lasting ceramic ball bearings
• Bur changes are quick and easy with a simple twist of the front section of the Handpiece
• Comes with either 2.35mm (3/32″) or 1/8″ collet installed.

H.MH-170 Brush Type Rotary Handpiece/Motor

• 6.2″ overall length, 5/8″ grip diameter, 1″ motor diameter, 7.3 oz./208 gr., DC30V/1.2A. CE
• Slender, contoured grip for precise and very high speed work up to 38,000 rpm.
• Fan cooled, brush-type continuous duty motor that runs cool and vibration free with permanently lubricated, shielded ball bearings that require no lubrication.
• Select a 2.35mm (3/32″) or 1/8″ collet installed. Bur changes are quick and easy with a simple twist of the front section of the Handpiece.
• Collet Adapters are available for simplifying changes between accessories with different shank sizes.
• Comes supplied in Kits K.1070 and K.1090. Also works withthe same HP4-917 ControlUnit that comes withMicromotor KitsK.1020 and K.1080.
