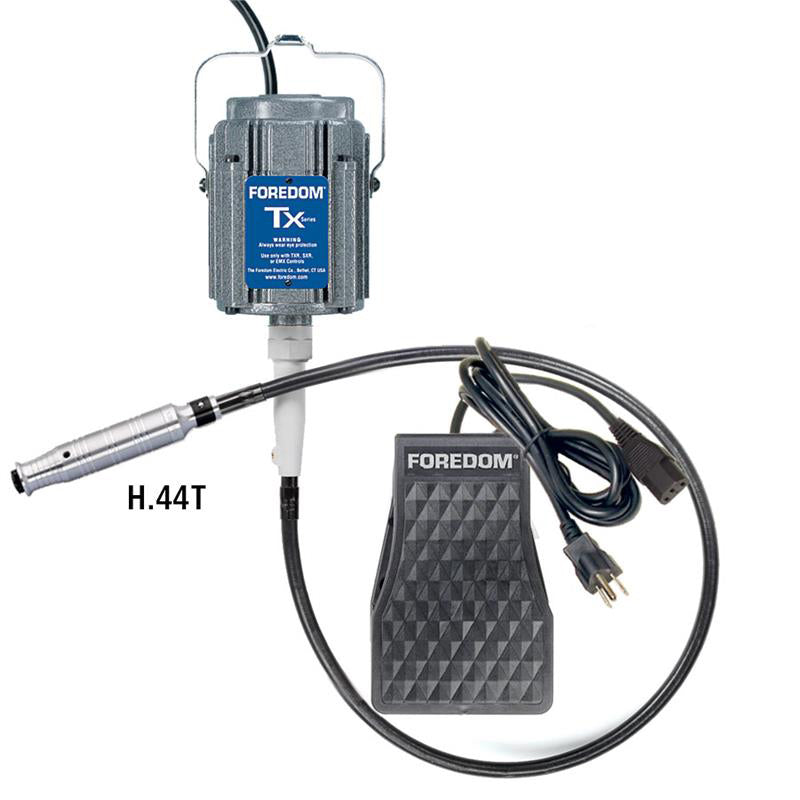

Foredom K.8414 Fs Set, M.Tx W/66Nc, C.Txr, H.44T, 115V

Product Description

Foredom - K.8414 M.TX hang-up motor with 66″ long non-conductive shafting, plastic foot control, H.44T handpiece. Flex Shaft Tool Sets include popular combinations of motors, speed controls, and handpieces – the three key components of a complete flexible shaft machine. Unlike our Pre-Packed Kits, they do NOT come with any accessory assortments, but do include a tube of grease.

Motor and Speed Control carry a 2 Year Limited Warranty.

Foredoms most powerful flex shaft machines with 1/3HP have permanent magnet DC motors that feature the latest in flex shaft technology. These ball bearing models utilize advanced rare earth magnets (in place of the wound fields in our universal type Series SR motors) that deliver more torque at the low end and throughout the entire speed range of 500 to 15,000 RPM. No other flex shaft gives you greater control of the cutting tool, drill, or bur under any load. Comes equipped with a motor bale for hanging, and longer and specialized 66″ inner shaft which is non-conductive and different from our standard shaft. It was originally developed by our engineers for equine dentists and other users with similar applications. The shaft has a plastic motor connector in place of our standard metal components.

2. Speed Control: C.TXR looks the same as our standard foot operated control but it has special electronics that converts AC current from an electrical outlet to DC current, the type required by Series TX motors. This control also has a different style plug that is made to fit the motor’s shielded-type plug. The C.TXR features solid state circuitry in a heavy duty plastic housing with an extra wide footprint, low profile, and non-skid pads on the bottom.

Flexible shaft grease

H.44T Handpiece Collet style handpiece is popular among woodcarvers as it accommodates larger accessories with shank diameters up to 1/4″. It comes with 3/32″, 1/8″ and 1/4″ collets. The tapered design allows for close and safe work.
