Foredom M.LXBH-EMX Lx Bench Motor W/Sq Drive, Dial Control, 115V

Product Description

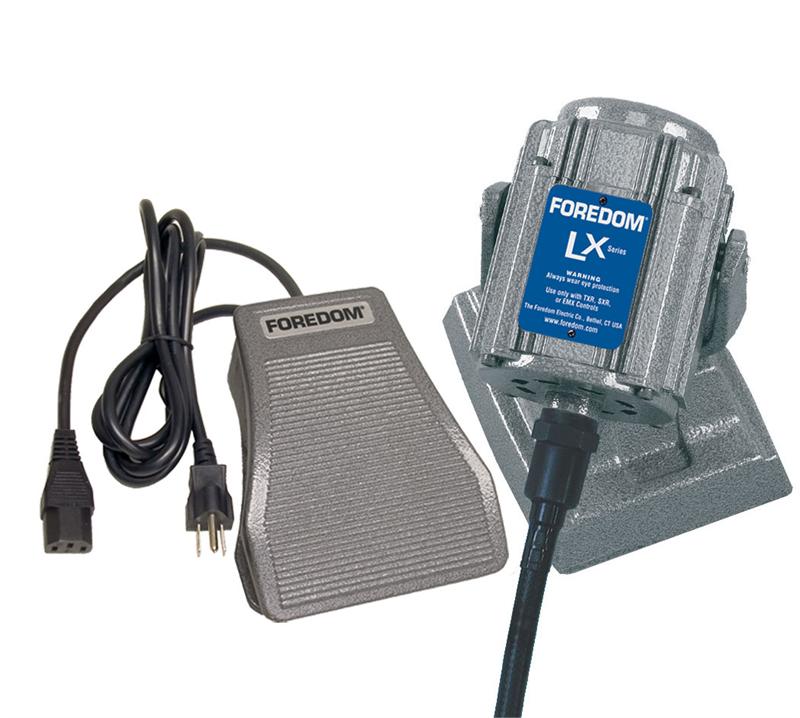

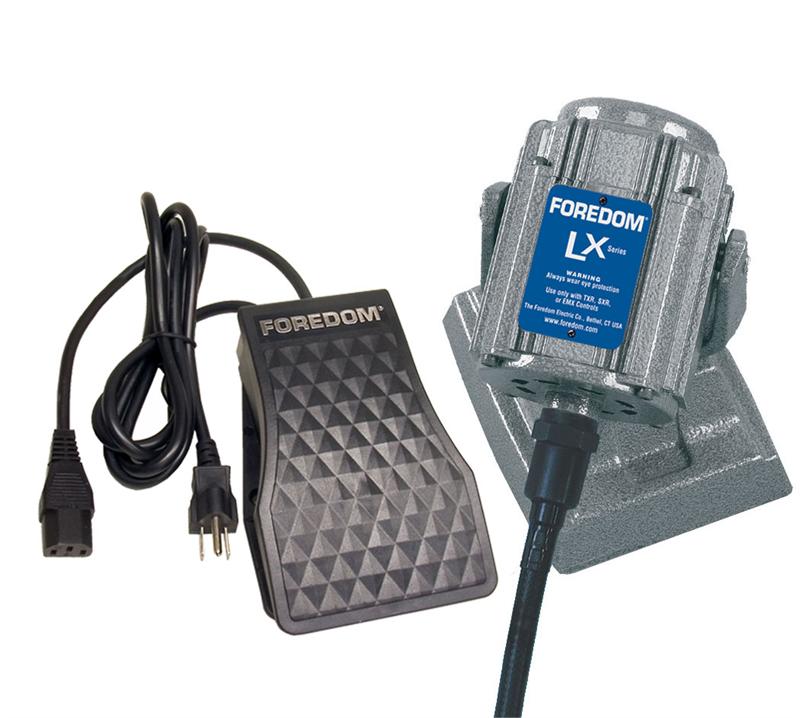

Foredom - M.LXBH-EMX Here a bench style version of Foredom’s High Torque/Low Speed Series LXH motor comes mounted in a cast-iron base for easy placement anywhere on the workbench. It is teamed up with the C.TXR-1 foot operated speed control in plastic housing.

Square drive Series LXBH flex shafts feature 63″ long, heavier square drive shaft and protective sheath in place of a standard key-tip shaft and sheath. Square drive shafting ONLY works with Foredom’s square drive handpieces- the H.25H, H.30H, H.44HT and new H.28H.

Two Year Limited Warranty on Motor and Control.

M.LXB Motor permanent magnet motors are specifically designed for high torque/low speed applications, offering more power for jobs like stone setting, wax modeling, and pearl drilling. M.LX, M.LXM, and M.LXB ball bearing motors feature full power and torque from start up and throughout the entire speed range up to 5,000 rpm. They are ideal for use with Foredoms drill presses. They also are well matched with the H.15 and H.15D Hammer Handpieces. It comes equipped with our standard 39″ long key tip shafting for connecting to any of Foredoms quick disconnect handpieces.

M.LXB motors are available in 115 Volt and 230 Volt.

These controls have the same housing as other Foredom speed controls but they convert AC current from an electrical outlet to DC current required by Series LX motors. These controls have a different style plug that is made to fit the motor’s shielded-type plug. Damage will result if the motor is connected to any other speed control.
