Foredom MSP16 Tune-Up Kit, 1/8 Hp S & Sr, 110V

Product Description

Foredom - MSP16 32-Pc Tune-Up Kits include essential maintenance items that keep motors and handpieces running at peak performance. They can even transform heavily used, older, even discontinued or worn machines into ones that run like new. Four dedicated kits are configured to accommodate Foredom’s line.

The key to a Foredom’s longevity is maintenance. Over the life of a machine, users can expect to clean, lubricate and, ultimately replace shafts, sheaths, and motor brushes. Motor and handpiece bearings may also wear over time, and, depending on the level of use, these components may require replacement. The fact that users can install new parts and perform routine maintenance without having to send the tool back to the factory, let alone replace it altogether, offers obvious advantages. The financial burden is minimized, as is the potential for lost production time. See parts diagrams, instruction manuals, how-to videos, and other reference materials below.

• MSP12 is the Kit for Series SR motors built since 2005.
• MSP10 is the Kit for Series TX LX motors.
• MSP16 is the Kit for old, discontinued 1/8HP Series S SR motors (made prior to 2005).
• MSP14 is the Kit for old and discontinued Series CC motors.

MSP12 for Series SR motors built since 2005 contains:

• S-93 Key Tip Shaft
• S-77 Sheath
• MS10006 Tube of Foredom Grease
• UA111P Motor Connector
• UA113-4 Set Screws for Motor Connector, 4-pk
• HP43 Spring Clip for all Handpieces
• HP48-4 Catch Ball for all Handpieces, 4-pk
• HPCK-0 Chuck Key for H.30® Handpieces
• HP103117 Pin Wrench Assembly for H.44T Handpieces
• A-PS83 Screwdriver
• UA112-4 Set Screws for Key Tip Shafts
• HP61 Ball Bearings for Motor Handpiece, 2-pk
• HPG-30 Handpiece Grip for H.30® Handpieces
• UA1059 Hanging Bale for SR Motors
• UA106-4 Shoulder Screws for SR Motor Bales
• MP132P Motor Brush Pair for SR Motors
• MP133 Motor Brush Caps for SR Motors, 2-pk

MSP10 for Series TX LX motors contains:

• S-93 Key Tip Shaft
• S-77 Sheath
• MS10006 Tube of Foredom Grease
• UA111P Motor Connector
• UA113-4 Set Screws for Motor Connector, 4-pk
• HP43 Spring Clip for all Handpieces
• HP48-4 Catch Ball for all Handpieces, 4-pk
• HPCK-0 Chuck Key for H.30® Handpieces
• HP103117 Pin Wrench Assembly for H.44T Handpieces
• A-PS83 Screwdriver
• UA112-4 Set Screws for Key Tip Shafts
• HP61 Ball Bearings for Motor Handpiece, 2-pk
• HPG-30 Handpiece Grip for H.30® Handpieces
• UA1059 Hanging Bale for TX LX Motors
• UA106-4 Shoulder Screws for TX LX Motor Bales
• MP319P Motor Brush Pair for TX LX Motors
• MP133 Motor Brush Caps for TX LX Motors, 2-pk

MSP14 for old and discontinued Series CC motors contains:

• S-93 Key Tip Shaft
• S-77 Sheath
• MS10006 Tube of Foredom Grease
• UA111P Motor Connector
• UA113-4 Set Screws for Motor Connector, 4-pk
• HP43 Spring Clip for all Handpieces
• HP48-4 Catch Ball for all Handpieces, 4-pk
• HPCK-0 Chuck Key for H.30® Handpieces
• HP103117 Pin Wrench Assembly for H.44T Handpieces
• A-PS83 Screwdriver
• UA112-4 Set Screws for Key Tip Shafts
• HP61 Ball Bearings for Motor Handpiece, 2-pk
• HPG-30 Handpiece Grip for H.30® Handpieces
• UA105 Hanging Bale for CC Motors
• UA106S-4 Shoulder Screws for CC Motor Bales
• MP119P Motor Brush Pair for CC Motors
• MP120 Motor Brush Caps for CC Motors, 2-pk

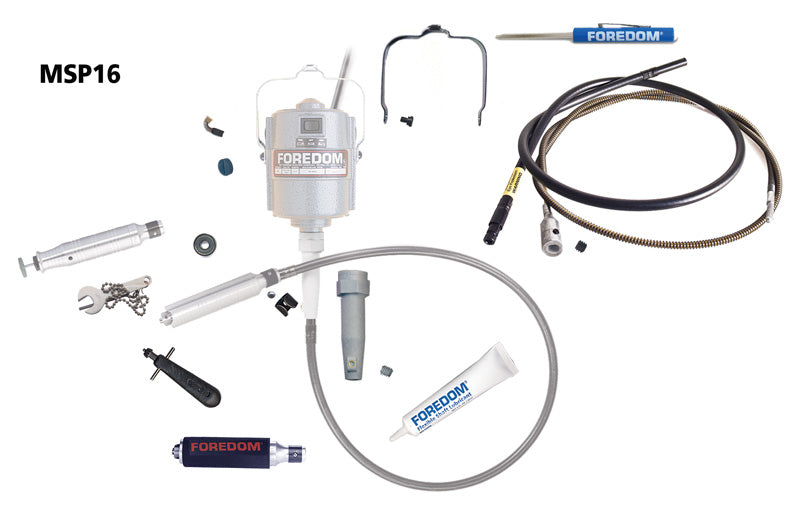

MSP16 for old, discontinued 1/8HP Series S SR motors (made prior to 2005) contains:

• S-93 Key Tip Shaft
• S-77 Sheath
• MS10006 Tube of Foredom Grease
• UA111P Motor Connector
• UA113-4 Set Screws for Motor Connector, 4-pk
• HP43 Spring Clip for all Handpieces
• HP48-4 Catch Ball for all Handpieces, 4-pk
• HPCK-0 Chuck Key for H.30® Handpieces
• HP103117 Pin Wrench Assembly for H.44T Handpieces
• A-PS83 Screwdriver
• UA112-4 Set Screws for Key Tip Shafts
• HP61 Ball Bearings for Motor Handpiece, 2-pk
• HPG-30 Handpiece Grip for H.30® Handpieces
• UA105 Hanging Bale for 1/8HP S SR Motors
• UA106S-4 Shoulder Screws for 1/8HP S SRMotor Bales
• MP2019P Motor Brush Pair for 1/8HP S SRMotors
• MP120 Motor Brush Caps for 1/8HP S SRMotors, 2-pk
